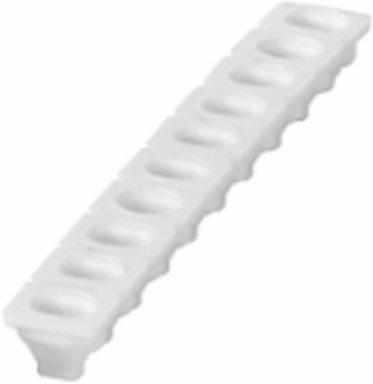

Weidmuller 1632140000 ZRH 1.5N/1
- MPN: 1632140000
- PPN: WDM-1632140000
CAD
$0.16
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Z-series, Reducing sleeve
Documentation & Downloads
Specifications
Approvals
| ROHS | Conform |
|---|
Dimensions And Weights
| Width | 4.85 mm |
|---|---|
| Height | 49.3 mm |
| Depth | 3.95 mm |
| Net weight | 0.058 g |
| Width (inches) | 0.191 inch |
|---|---|
| Height (inches) | 1.941 inch |
| Depth (inches) | 0.156 inch |
Additional Technical Data
| Explosion-tested version | No |
|---|---|
| Type of fixing | Plugged |
| Installation advice | Direct mounting |
|---|
Material Data
| Material | Wemid |
|---|---|
| UL 94 flammability rating | V-0 |
| Colour | grey |
|---|
Classifications
| ETIM 6.0 | EC002848 |
|---|---|
| eClass 9.0 | 27-14-11-92 |
| eClass 10.0 | 27-14-11-92 |
| ETIM 7.0 | EC002848 |
|---|---|
| eClass 9.1 | 27-14-11-92 |
| UNSPSC | 30-21-18-11 |
System Specifications
| Version | For the terminals |
|---|
Temperatures
| Storage temperature, max. | 40 °C |
|---|---|
| Storage temperature | 10 °C...40 °C |
| Continuous operating temp., max. | 120 °C |
| Storage temperature, min. | 10 °C |
|---|---|
| Continuous operating temp., min. | -50 °C |
