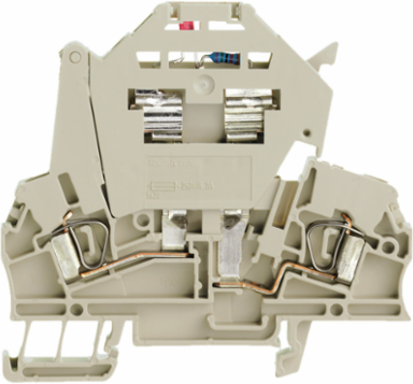

Weidmuller 1315920000 ZSI 2.5/LD 120AC GR

MPN: 1315920000
PPN: WDM-1315920000

$28.08

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Z-series, Fuse terminal, Rated cross-section: 2.5 mm², Tension-clamp connection, Direct mounting

Documentation & Downloads

Specifications

Approvals

Approvals	EAC

ROHS	Conform

Dimensions And Weights

Width	7.9 mm
Height	79.5 mm
Depth	73 mm
Depth including DIN rail	74 mm

Width (inches)	0.311 inch
Height (inches)	3.13 inch
Depth (inches)	2.874 inch
Net weight	21.6 g

Fuse Terminals

Cartridge fuse	G-Si. 5 x 20
Power loss for overload and short-circuit protection for an individual arrangement	2.5 W at 2.5 A @ 27°C
Power loss for short-circuit protection only for an individual arrangement	4.0 W at 6.3 A @ 52°C

Power loss for overload and short-circuit protection for a composite arrangement	1.6 W at 6.3 A @ 41°C
Power loss for short-circuit protection only for a composite arrangement	2.5 W at 6.3 A @ 55°C

Additional Technical Data

Explosion-tested version	No
Number of similar terminals	1
Type of mounting	Snap-on

Installation advice	Direct mounting
Open sides	right

Material Data

Material	Wemid
UL 94 flammability rating	V-0

Colour	green

Safety Note

Safety notice	Safety Information

Classifications

ETIM 6.0	EC000899
eClass 9.0	27-14-11-16
eClass 10.0	27-14-11-16

ETIM 7.0	EC000899
eClass 9.1	27-14-11-16

System Specifications

Version	Tension-clamp connection, Fuse cartridge, with LED, for plug-in cross-connector, One end without connector
Number of potentials	1
Number of clamping points per level	2
Levels cross-connected internally	No
Rail	TS 35
PE function	No

End cover plate required	Yes
Number of levels	1
Number of potentials per tier	1
PE connection	No
N-function	No
PEN function	No

Temperatures

Storage temperature, max.	40 °C
Storage temperature	10 °C...40 °C
Continuous operating temp., max.	120 °C

Storage temperature, min.	10 °C
Continuous operating temp., min.	-50 °C

Conductors For Clamping (Additional Connection)

Conductor cross-section, flexible plus plastic collar DIN 46228/1, further connection, max.	2.5 mm²

Rating Data

Rated cross-section	2.5 mm²
Rated voltage to adjoining terminal	500 V
Current at maximum wires	6.3 A
Volume resistance according to IEC 60947-7-x	1.33 mΩ
Rated impulse withstand voltage	6 kV

Rated voltage	120 V
Rated current	6.3 A
Standards	IEC 60947-7-3
Power loss in accordance with IEC 60947-7-x	0.77 W
Pollution severity	3

Conductors For Clamping (Rated Connection)

Blade size	0.6 x 3.5 mm
Clamping range, min.	0.13 mm²
Gauge to IEC 60947-1	A3
Stripping length	10 mm
Wire connection cross section AWG, max.	AWG 12
Wire connection cross section, finely stranded, max.	4 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.	0.5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.	0.5 mm²
Wire connection cross-section, solid core, max.	4 mm²

Clamping range, max.	4 mm²
Connection direction	Inclined / angled
Number of connections	2
Type of connection	Tension-clamp connection
Wire connection cross section AWG, min.	AWG 26
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.	2.5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.	2.5 mm²
Wire connection cross-section, finely stranded, min.	0.5 mm²
Wire connection cross-section, solid core, min.	0.5 mm²
