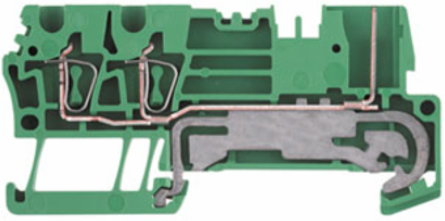

Weidmuller 1815100000 ZTPE 2.5/3AN/1

MPN: 1815100000
PPN: WDM-1815100000

$4.31

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Z-series, PE terminal, Rated cross-section: 2.5 mm², Tension-clamp connection, Green/yellow

Documentation & Downloads

Specifications

Approvals

Approvals	CCSAUS, CE, cURus, DNV GL, EAC, KEMAKEUR
UL File Number Search	E60693

ROHS	Conform

Dimensions And Weights

Width	5.1 mm
Height	71.5 mm
Depth	34.5 mm
Depth including DIN rail	35 mm

Width (inches)	0.201 inch
Height (inches)	2.815 inch
Depth (inches)	1.358 inch
Net weight	12.34 g

Csa Rating Data

Certificate number (cCSAus)	154685-1460993
Current size D (cCSAus)	5 A
Voltage size D (cCSAus)	600 V
Wire cross section min. (cCSAusX)	26 AWG

Current size C (cCSAus)	20 A
Voltage size C (cCSAus)	300 V
Wire cross section max. (cCSAusX)	12 AWG

Additional Technical Data

Explosion-tested version	No
Type of mounting	Snap-on

Open sides	right

Material Data

Material	Wemid
UL 94 flammability rating	V-0

Colour	Green/yellow

Safety Note

Safety notice	Safety Information

Classifications

ETIM 6.0	EC000901
eClass 9.0	27-14-11-41
eClass 10.0	27-14-11-41

ETIM 7.0	EC000901
eClass 9.1	27-14-11-41
UNSPSC	30-21-18-11

System Specifications

Version	2 tension-clamp connections - 1 plug-in connection, pluggable, With PE connection
Number of levels	1
Levels cross-connected internally	No
Rail	TS 35

End cover plate required	Yes
Number of clamping points per level	3
PE connection	Yes
PEN function	No

Temperatures

Storage temperature, max.	40 °C
Storage temperature	10 °C...40 °C
Continuous operating temp., max.	120 °C

Storage temperature, min.	10 °C
Continuous operating temp., min.	-50 °C

Conductors For Clamping (Additional Connection)

Conductor cross-section, flexible plus plastic collar DIN 46228/1, further connection, max.	2.5 mm²

Connection type, additional connection	Plug-in connection

Rating Data

Rated cross-section	2.5 mm²
Rated voltage to adjoining terminal	500 V
Standards	IEC 61984, In accordance with IEC 60947-7-1
Power loss in accordance with IEC 60947-7-x	0.77 W
Pollution severity	3

Rated voltage	500 V
Max. voltage of clamp support & pluggable system	690 V
Volume resistance according to IEC 60947-7-x	1.33 mΩ
Rated impulse withstand voltage to adjacent terminal	6 kV

Conductors For Clamping (Rated Connection)

Blade size	0.6 x 3.5 mm
Clamping range, min.	0.13 mm²
Gauge to IEC 60947-1	A2
Stripping length	10 mm
Wire connection cross section AWG, max.	AWG 26
Wire connection cross section, finely stranded, max.	4 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.	0.5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.	0.5 mm²
Wire connection cross-section, solid core, max.	4 mm²

Clamping range, max.	4 mm²
Connection direction	top
Number of connections	3
Type of connection	Tension-clamp connection
Wire connection cross section AWG, min.	AWG 12
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.	2.5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.	2.5 mm²
Wire connection cross-section, finely stranded, min.	0.5 mm²
Wire connection cross-section, solid core, min.	0.5 mm²
