Schneider Electric VH Series: The Heavy-Duty Safety Switch Redefining Industrial Power Control

Introduction: Is Your Disconnect a Safety Asset or a Liability?

In demanding industrial and commercial environments, the margin for error is zero. The consequences of an electrical fault, inefficient maintenance, or an unreliable industrial safety disconnect are measured in costly downtime and, more critically, in personnel safety. To address this, Schneider Electric engineered the VH Line of heavy-duty safety switches—a robust, field-proven solution designed to move beyond mere code compliance and deliver tangible operational value.

As a cornerstone of Schneider’s acclaimed VisiPacT™ safety switch family, the VH Line is a masterclass in modern electrical safety design. It integrates a ruggedized mechanical structure with at-a-glance visual inspection and modular flexibility, making it the ideal industrial safety disconnect for today's lean operations and tomorrow’s smart infrastructure.

Engineered for the Real World: Core Features of the VH Line

1. Built for Harsh Environments: NEMA 4X Heavy-Duty Construction

These aren't your standard disconnects. The VH Line features zinc-plated steel or stainless steel housings with gasketed, sealed covers to provide superior resistance against dust, water, and corrosive agents. With ratings up to NEMA Type 4X, these switches are engineered for reliable deployment in the toughest locations:

• Food processing and washdown-rated sanitary environments
• Outdoor electrical infrastructure exposed to the elements
• Chemical and petrochemical facilities
• Water and wastewater treatment plants

Every switch is built for high impact and thermal resilience, ensuring fail-safe performance even under severe load cycles and constant vibration.

2. Flexible Power Control: Fused and Non-Fused Configurations

Available from 30A to 600A with 600V AC/DC ratings, the VH Line provides the versatility your system demands.

• Fused models offer integrated overload and short circuit protection.
• Non-fused models provide dependable load isolation.
• Dual/Triple pole configurations ensure flexibility across single-phase and three-phase systems.

Fully compliant with UL98 and CSA C22.2 standards, these switches guarantee performance and seamless integration into regulated North American markets.

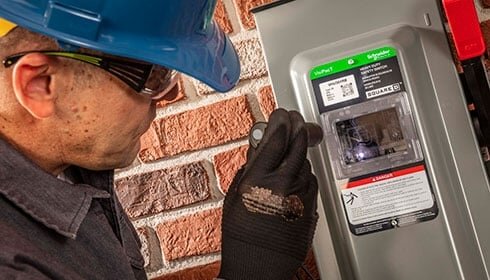

3. A Breakthrough in Safety: The Visi-Door Viewing Window

A key innovation setting the VH Line apart is the factory-installed viewing window. This simple feature transforms maintenance and safety protocols, allowing operators to:

• Visually confirm blade and fuse status (ON/OFF, blown fuses) without opening the energized enclosure.
• Reduce PPE requirements and arc flash risk during routine checks.

This design enhancement is a prime example of how a safety switch with a viewing window can dramatically reduce maintenance time while elevating workforce safety.

4. Unmistakable LOTO Compliance: The Optimized Handle Mechanism

A handle should offer clear, unambiguous control. The VH Line handle is reimagined for operational certainty:

• Clearly defined tactile detents at ON and OFF positions, providing unmistakable feedback.
• A trip-free mechanism ensures the switch remains OFF even if the handle is forced.
• Standard lockout/tagout capability with three padlock hasps for complex LOTO procedures.
• Optional red/yellow handles for high-visibility emergency stop applications.

This user-focused design ensures safe operation, even in low-light or high-pressure situations.

5. Designed for Rapid Deployment: Modular Accessories & Options

Standardize your inventory and simplify installation with the VH Line's modular design:

• Removable or bonded neutral blocks
• Multiple ground lug and isolated ground options
• Auxiliary contacts for remote status monitoring in a SCADA or BMS
• Field-convertible knockouts and drain provisions for mounting flexibility

This adaptability allows for scalable deployment across your facility without the need for custom orders or excessive SKUs.

More Than a Disconnect: A Strategic Asset for Your Facility

Choosing a VH Line switch is an investment in your facility's operational health.

• Operational Efficiency: The visual inspection window can reduce maintenance verification time by up to 70% (based on internal Schneider Electric field studies). Faster, safer LOTO compliance gets equipment back online sooner.
• Sustainability: A long service life and high ingress protection mean fewer replacements and less waste from damaged units. Select models carry Schneider’s Green Premium™ certification, aligning with your LEED and ISO 14001 goals.

Smart Infrastructure Readiness: While a best-in-class mechanical solution today, the VH Line is built on a platform ready for the future. This foundation supports future integration with digital modules for predictive maintenance and enhanced asset management, future-proofing your investment.

Conclusion: Future-Ready Safety, Engineered for Today

The Schneider Electric VH Line of heavy-duty safety switches does more than just meet regulatory standards—it establishes a new benchmark for what a critical safety device should be. It delivers on safety, maintainability, and system flexibility.

Whether you're designing a new industrial plant or upgrading legacy infrastructure, specifying a UL98 compliant safety switch that offers visual verification and rugged reliability is a critical decision. The VH Line is the clear choice for facilities that value safety, efficiency, and long-term performance.
