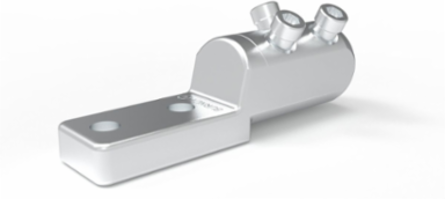

Burndy KASB44U2N QIKSHEARTM Shear Bolt Lug, 1000 kcmil, 2-Hole, 1-1/2 Inch, NEMA Drilled
- MPN: KASB44U2N
- UPC: 621945637504
- PPN: BUR-50109585
- UNSPSC: 39121408
CAD
$162.54
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Mechanical Shear Bolt Lug, 1000 kcmil, 2-hole, 1/2" Stud, 1.75" Spacing, Dual Rated, Tin Plated
Features
- No Tooling or Die Investement Required, no crimp tools necessary
- Dual Rated AL9CU for use with both copper and aluminum conductor
- cULus Listed Wire Connector to UL486A-486B
- Up to 35kV voltage rating
- Tin Plated aluminum connectors and bolts reduce galvanic corrosion and oxide build up
- Range-taking capabilities on most sizes
Specifications
Key Specifications
- Country of Origin
- Mexico
- Dimension - Pad Width inch
- 1.75
- Width
- 1.750 in
- Length
- 6.95 in
- Type
- Bolted Lugs & Terminals
- Outside Diameter
- 2.01
- Freight Class Code
- 16027000
- Image Actual Or Representative
- A
- Hole Spacing
- 1.75 in
- Wire Range
- 1000 kcmil (Class B & C)
- BOX SIZE
- 6.625x14.563x8.313 (in)
- Carton - Number of Sub Packs
- 14
- Carton - SCC-14 Next Lower Level Sub Pack
- 00621945637504
- Case - SCC-14 Next Lower Level Sub Pack
- 30621945637505
- Package Height
- 6.625 in
- Package Quantity
- 14 EA
- Package Width
- 8.313 in
- Pallet Height
- 45.500 in
- Pallet Weight
- 1524.600 lb.
- NAICS Code
- 3359319102
Description - Slang1 Cable to Flat
Dimension - Stud Size inch1/2”
Hex Key5/16”
Product Type1 Cable
General Literature Asset 1 Display TextQIKSHEAR® Bolt Connectors
Class CodeB51
Harmonization Code8535908020
Sub Class CodeB51BFSF
SeriesQIKSHEAR™ Series
Base Unit of MeasureEA
Carton - Gross Weight per Pack16.940 lb.
Carton - Pack DescriptionCarton
Carton - Total Units14
Package - GTIN - Package30621945637505
Package Length14.563 in
Package Weight16.940 lb.
Pallet - GTIN - Package70621945637503
Pallet Length48.000 in
Pallet Width40.000 in
