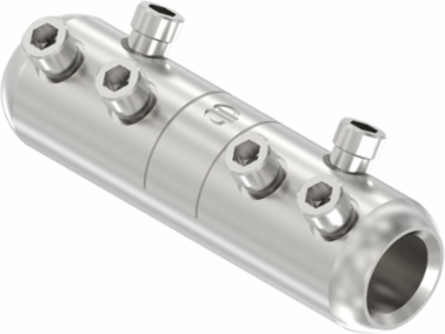

Burndy KSSB44U QIKSHEAR Shear Bolt Splice 1,000 kcmil, 3/8 Inch Socket, Tin Plated

MPN: KSSB44U
UPC: 621945638532
PPN: BUR-50117212
UNSPSC: 39121408

$282.45

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Mechanical Shear Bolt Splice, 1000 kcmil Cu/Al, Tin Plated Connector and Screws. Uses 3/8" Socket.

Features

No Tooling or Die Investement Required, no crimp tools necessary
Dual Rated AL9CU for use with both copper and aluminum conductor
cULus Listed Wire Connector to UL486A-486B
Up to 35kV voltage rating
Tin Plated aluminum connectors and bolts reduce galvanic corrosion and oxide build up
Range-taking capabilities on most sizes

Specifications

Key Specifications

Country of Origin	United States
Hex Key	3/8"
General Literature Asset 1 Display Text	QIKSHEAR® Bolt Connectors
Class Code	B51
Harmonization Code	8535908020
Sub Class Code	B51BFSF
Wire Range	1000 kcmil (Class B & C)
BOX SIZE	6.375x12.313x9.313 (in)
Carton - Number of Sub Packs	5
Carton - SCC-14 Next Lower Level Sub Pack	00621945638532
Case - SCC-14 Next Lower Level Sub Pack	30621945638533
Package Quantity	15 EA
Pallet - GTIN - Package	70621945638531
Pallet Length	48.000 in
Pallet Width	40.000 in

Description - Slang	Mechanical splice
Length	7 in
Outside Diameter	2.01
Freight Class Code	16027000
Image Actual Or Representative	A
Series	QIKSHEAR™ Series
Base Unit of Measure	EA
Carton - Gross Weight per Pack	0.000 lb.
Carton - Pack Description	Carton
Carton - Total Units	5
Package - GTIN - Package	30621945638533
Package Weight	0.000 lb.
Pallet Height	44.000 in
Pallet Weight	0.000 lb.
NAICS Code	3359319102
