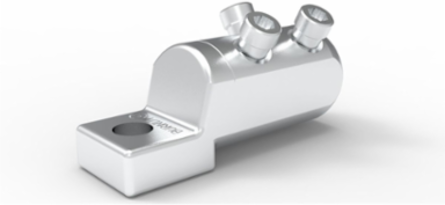

Burndy KASB39U12 QIKSHEAR Shear Bolt Lug 600-750 kcmil 1-Hole, 1/2 Inch Hole

MPN: KASB39U12
UPC: 621945658868
PPN: BUR-50124781
UNSPSC: 39121408

$141.26

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Mechanical Shear Bolt Lug, 600-750 kcmil, 1-hole, 1/2" Stud, Dual Rated, Tin Plated

Features

No Tooling or Die Investement Required, no crimp tools necessary
Dual Rated AL9CU for use with both copper and aluminum conductor
cULus Listed Wire Connector to UL486A-486B
Up to 35kV voltage rating
Tin Plated aluminum connectors and bolts reduce galvanic corrosion and oxide build up
Range-taking capabilities on most sizes

Specifications

Key Specifications

Country of Origin	Mexico
Height	2 in
Product Type	1 Cable
Width	1.67 in
Class Code	B51
Harmonization Code	8535908020
Sub Class Code	B51BFSF
Base Unit of Measure	EA
Carton - Gross Weight per Pack	51.660 lb.
Carton - Pack Description	Carton
Carton - Total Units	20
Package - GTIN - Package	30621945658869
Package Weight	0.000 lb.
Pallet Height	50.000 in
Pallet Weight	1428.480 lb.
NAICS Code	3359319101

Dimensions	5.19 in x 1.67 in x 2 in
Length	5.19 in
Type	Bolted Lugs & Terminals
General Literature Asset 1 Display Text	QIKSHEAR® Bolt Connectors
Freight Class Code	16027000
Image Actual Or Representative	A
Series	QIKSHEAR™ Series
BOX SIZE	6.500x14.400x8.250 (in)
Carton - Number of Sub Packs	20
Carton - SCC-14 Next Lower Level Sub Pack	00621945658868
Case - SCC-14 Next Lower Level Sub Pack	30621945658869
Package Quantity	24 EA
Pallet - GTIN - Package	70621945658867
Pallet Length	42.000 in
Pallet Width	42.000 in
