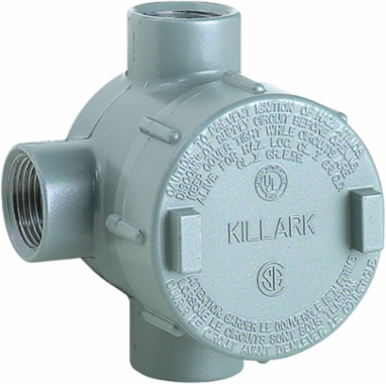

Killark GEJTT-5 1-1/2 Inch Outlet Body T-Type, Aluminum, 10.25 x 8.5 x 4.75 Inch Dimensions
- MPN: GEJTT-5
- UPC: 783936211145
- PPN: HBL-GEJTT-5
- UNSPSC: 39121314
CAD
$827.43
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
1-1/2" GEJ Outlet Body T-Type, Aluminum
Features
- External cover threads on body protecting conductors from damage during pulling.
- No pinching of conductors during cover installation.
- Taper threaded hubs to provide ground continuity.
- Smooth integral hub bushing to protect conductor insulation when pulling.
- Internally threaded cover openings for additional wiring room.
- Cover furnished with box.
- Weather-resistant finish.
- Green ground screw standard.
- GE conduit outlet boxes have: external cover threads on body protecting conductors from damage during pulling; no pinching of conductors during cover installation; taper threaded hubs to provide ground continuity; smooth integral hub bushing to protect co
Documentation & Downloads
Specifications
Key Specifications
- Size
- 10.25 in x 8.5 in x 4.75 in
- ARRA Compliant
- Contact Manufacturer
- Color
- Gray
- Hazardous Rating(s)
- Class I, Divisions 1 & 2, Group C (if sealed within 18"), D;Class I, Zones 1 & 2, Group IIA;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2
- Hub Size
- 1-1/2"
- Width
- 8.5 in
- Application
- Conduit boxes installed in conduit systems within hazardous areas to: protect conductors in threaded rigid conduit, act as pull and splice boxes, interconnect lengths of conduit, change conduit direction, and provide access to conductors for maintenance and future system changes.
- Type
- Outlet Body With Cover
- Description - Invoice
- 1-1/2" ALUM OUTLET BODY T TYPE
- Harmonization Code
- 7609000299
- Lead Time
- 49 wk
- Order Multiple
- 1 EA
- Sub Class Code
- D30D237
- Gross Weight with Packaging
- 5.29
- UL File Number
- E10514
- Series
- GE Series
- BOX SIZE
- (in)
- Master Pack Description
- Each
Special FeaturesGE conduit outlet boxes have: external cover threads on body protecting conductors from damage during pulling; no pinching of conductors during cover installation; taper threaded hubs to provide ground continuity; smooth integral hub bushing to protect co
Country of OriginMexico
Dimensions10.25 in x 8.5 in x 4.75 in
Height4.75 in
Length10.25 in
Engineering Drawing 1 Display TextGEJTT-5 Engineering Drawing
Finish TypePowder Epoxy Paint
Class CodeD30
Freight Class Code06316009
Image Actual Or RepresentativeR
MSDS FlagNo
Returnable IndicatorYes
CSA File NumberLR11716
Hub PatternT
MaterialAluminum, Copper Free (less than 4/10 of 1%)
Base Unit of MeasureEA
Carton - SCC-14 Next Lower Level Sub Pack00783936211145
NAICS Code3359326103
Certifications
- EU RoHS Indicator
- Contact Manufacturer
