Killark LB37 1 Inch LB Hub Conduit Body, Iron, Dimensions 7x2x3 Inch, NEMA 3 Seal
- MPN: LB37
- UPC: 783936011028
- PPN: HBL-LB37
- UNSPSC: 39131708
CAD
$85.38
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description

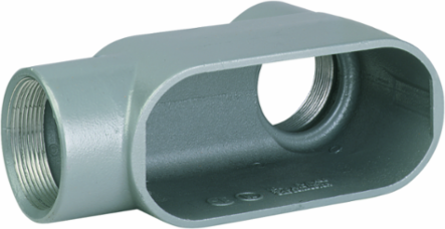

1" LB Hub, Iron Duraloy 7 Conduit Body
Features
- Enhanced sealing capabilities neoprene sealing gaskets provide a NEMA 3 Seal.
- Suitable for wet locations when used with gaskets.
- High-quality sealing hardware 316 stainless steel cover screws and washers with neoprene gaskets.
- Innovative spring clip design for installation ease and repeat usage.
- For use with threaded rigid conduit steel or aluminum.
- Flat-back design for greater wiring capacity and mounting stability.
- Intermateability UL Listed and CSA Certified interchangeability with competitive products. Suitable for wet locations when used with gaskets. Innovative spring clip design for installation ease and repeat usage. Smooth integral wire bushings protects cabl
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | India |
|---|---|
| Hazardous Rating(s) | Suitable for use in hazardous location applications when installed according to NEC Articles 501.10(b) (Class I, Division 2) or 502.10, 503.10, and 505.15 (Class I Zone 2). |
| Color | Gray |
| Height | 3 in |
| Length | 7 in |
| Type | Conduit Body |
| Weight | 1.78 lb. |
| Finish Type | Powder Epoxy Paint |
| Class Code | D30 |
| Freight Class Code | 06316009 |
| Image Actual Or Representative | R |
| MSDS Flag | No |
| Returnable Indicator | Yes |
| CSA File Number | LR11852 |
| Hub Pattern | LB |
| Material | Iron |
| Base Unit of Measure | EA |
| Carton - Gross Weight per Pack | 8.900 lb. |
| Carton - Pack Description | Carton |
| Carton - Total Units | 5 EA |
| NAICS Code | 3359323110 |
| Dimensions | 7 in x 2 in x 3 in |
|---|---|
| Application | To provide access to conductors for pulling, splicing, and maintenance. Threaded for rigid conduit and IMC. |
| Finish | Powder Epoxy Paint |
| Hub Size | 1" |
| Special Features | Intermateability UL Listed and CSA Certified interchangeability with competitive products. Suitable for wet locations when used with gaskets. Innovative spring clip design for installation ease and repeat usage. Smooth integral wire bushings protects cabl |
| Width | 2 in |
| Engineering Drawing 1 Display Text | LB37 Engineering Drawing |
| ARRA Compliant | Contact Manufacturer |
| Description - Invoice | DURALOY7 1" LB COND. BDY FE |
| Harmonization Code | 7307110030 |
| Lead Time | 42 wk |
| Order Multiple | 1 EA |
| Sub Class Code | D30D230 |
| Gross Weight with Packaging | 1.78 |
| UL File Number | E3397 |
| Series | Duraloy 7 Series |
| BOX SIZE | 4.125x11.875x7.500 (in) |
| Carton - Number of Sub Packs | 5 |
| Carton - SCC-14 Next Lower Level Sub Pack | 00783936011028 |
| Master Pack Description | Each |
