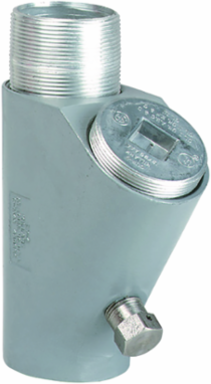

Killark EYD-4TM 1-1/4 Inch EYD Seal Fitting Iron with Nipple, Class I Hazardous Rating
- MPN: EYD-4TM
- UPC: 783936111766
- PPN: HBL-EYD-4TM
- UNSPSC: 39131708
CAD
$427.94
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
1-1/4" EYD Seal Fitting Iron, w/nipple Male/Female
Features
- Large opening for easy packing of fiber and pouring of compound
- Integral bushings in conduit hubs to protect conductor insulation from damage
- NPT tapped hubs to ensure ground continuity
- 25% conductor fill
- EYD-T style supplied with removable close nipples
- Simple to install internal drain to allow condensation to weep and conduit system to breathe
- Duraloy iron. Tri-coat finish of electrozinc, chromate sealant, and electrostatically applied powder coating.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
- Hazardous Rating(s)
- Class I, Divisions 1 & 2, Groups C, D;Class I, Zones 1 & 2, Groups IIB, IIA;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2
- Color
- Gray
- Hub Size
- 1-1/4"
- Type
- Sealing Fitting With Nipple
- General Literature Asset 2 Display Text
- ENY EYD Cross Reference Guide
- ARRA Compliant
- Contact Manufacturer
- Description - Invoice
- SEAL FTG FE 1-1/4"DRAIN NIPPLE
- Harmonization Code
- 7307199060
- Lead Time
- 35 wk
- Order Multiple
- 1 EA
- Sub Class Code
- D30D237
- Gross Weight with Packaging
- 3.2
- Material
- Iron
- Base Unit of Measure
- EA
- Carton - SCC-14 Next Lower Level Sub Pack
- 00783936111766
- NAICS Code
- 3359323110
Width1.938 in
ApplicationClass I, Divisions 1 and 2: The purpose of seals in a Class I hazardous location is to minimize the passage of gases and vapors and prevent the passage of flames from one electrical installation to another through the conduit system. Seals are required to
FinishPowder Epoxy Paint
Special FeaturesDuraloy iron. Tri-coat finish of electrozinc, chromate sealant, and electrostatically applied powder coating.
General Literature Asset 1 Display TextHazardous-rated seal-off fittings in expanded trade sizes and with improved design
Finish TypePowder Epoxy Paint
Class CodeD30
Freight Class Code06316009
Image Actual Or RepresentativeR
MSDS FlagNo
Returnable IndicatorYes
CSA File NumberLR11716
UL File NumberE10514
SeriesEYD Series
BOX SIZE(in)
Master Pack DescriptionEach
