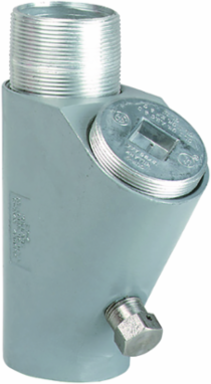

Killark EYD-6TM 2 Inch EYD Seal Fitting with Nipple, Iron, Powder Epoxy Paint Finish
- MPN: EYD-6TM
- UPC: 783936111780
- PPN: HBL-EYD-6TM
- UNSPSC: 39131708
CAD
$612.55
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
2" EYD Seal Fitting Iron, w/nipple Male/Female
Features
- Large opening for easy packing of fiber and pouring of compound
- Integral bushings in conduit hubs to protect conductor insulation from damage
- NPT tapped hubs to ensure ground continuity
- 25% conductor fill
- EYD-T style supplied with removable close nipples
- Simple to install internal drain to allow condensation to weep and conduit system to breathe
- Duraloy iron. Tri-coat finish of electrozinc, chromate sealant, and electrostatically applied powder coating.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
- Hazardous Rating(s)
- Class I, Divisions 1 & 2, Groups C, D;Class I, Zones 1 & 2, Groups IIB, IIA;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2
- Color
- Gray
- Height
- 5.125 in
- Length
- 5.688 in
- Type
- Sealing Fitting With Nipple
- General Literature Asset 1 Display Text
- Hazardous-rated seal-off fittings in expanded trade sizes and with improved design
- Finish Type
- Powder Epoxy Paint
- Class Code
- D30
- Freight Class Code
- 06316009
- Image Actual Or Representative
- R
- MSDS Flag
- No
- Returnable Indicator
- Yes
- CSA File Number
- LR11716
- UL File Number
- E10514
- Series
- EYD Series
- BOX SIZE
- (in)
- Master Pack Description
- Each
Dimensions5.688 in x 2.688 in x 5.125 in
ApplicationClass I, Divisions 1 and 2: The purpose of seals in a Class I hazardous location is to minimize the passage of gases and vapors and prevent the passage of flames from one electrical installation to another through the conduit system. Seals are required to
FinishPowder Epoxy Paint
Hub Size2"
Special FeaturesDuraloy iron. Tri-coat finish of electrozinc, chromate sealant, and electrostatically applied powder coating.
Width2.688 in
General Literature Asset 2 Display TextENY EYD Cross Reference Guide
ARRA CompliantContact Manufacturer
Description - InvoiceSEAL FTG FE 2" DRAIN NIPPLE
Harmonization Code7307199060
Lead Time35 wk
Order Multiple1 EA
Sub Class CodeD30D237
Gross Weight with Packaging6.4
MaterialIron
Base Unit of MeasureEA
Carton - SCC-14 Next Lower Level Sub Pack00783936111780
NAICS Code3359323114
