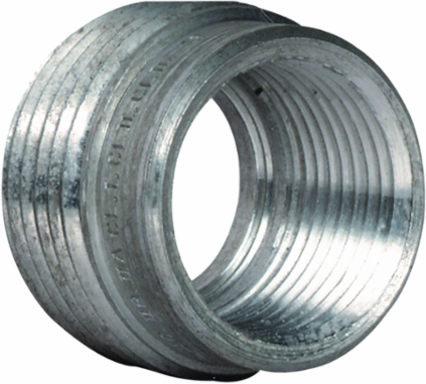

Killark R-42-EX Aluminum Reducing Bushing 1-1/4" to 3/4", Quad Listed, Copper-Free
Killark R-42-EX Aluminum Reducing Bushing 1-1/4" to 3/4", Quad Listed, Copper-Free
- MPN: R-42-EX
- UPC: 783936066998
- PPN: HBL-R-42-EX
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To view product inventory
CAD$103.82/ EA
Description
1-1/4" to 3/4" Aluminum Reducing Bushing, Quad Listed
Features
- Tapered threads (NPT)
- Smooth internal bushing protects conductors
- Threaded for Rigid Conduit or IMC
- Certified QUAD listed
- Killark’s reducing bushings and adapters assist in reducing the trade size of tapped holes and its smooth internal bushing protects conductors. The wide variety of reducing ranges allow for almost any combination of size changes. It is available in copper-free aluminum and zinc plated steel and is Certified Quad Listed.
Specifications
Specifications
- Country of Origin
- China
- Hub Size
- 1-1/4" to 3/4"
- Type
- Reducing Bushing
- Class Code
- D30
- Freight Class Code
- 06316009
- Image Actual Or Representative
- R
- Sub Class Code
- D30D237
- UL File Number
- E10514
- Series
- R Series
- BOX SIZE
- 3.250x3.250x6.500 (in)
- Carton - Number of Sub Packs
- 20
- Carton - SCC-14 Next Lower Level Sub Pack
- 00783936066998
Hazardous Rating(s)Class I, Divisions 1 & 2, Groups A, B, C, D;Class I, Zones 1 & 2, Groups IIC, IIB, IIA;Class II, Divisions 1 & 2, Groups E, F, G
Finish TypeNatural
ARRA CompliantContact Manufacturer
Description - Invoice1-1/4" - 3/4" REDUCER AL GLOBALLY LISTED
Harmonization Code7609000000
MSDS FlagNo
CSA File NumberLR11716
MaterialAluminum, Copper Free (less than 4/10 of 1%)
Base Unit of MeasureEA
Carton - Gross Weight per Pack13.500 lb.
Carton - Pack DescriptionCarton
Carton - Total Units20 EA
Certifications
- EU RoHS Indicator
- Contact Manufacturer
