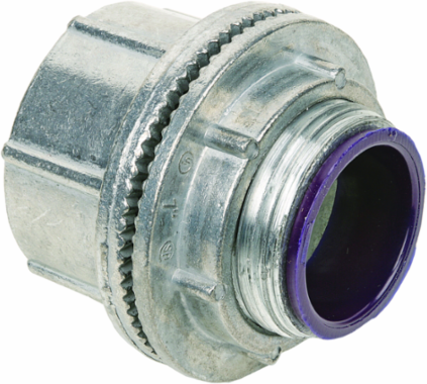

Killark WH-4 1-1/4 Inch Weatherproof Conduit Hub, Zinc Construction, Suitable for Hazardous Locations
- MPN: WH-4
- UPC: 783936841830
- PPN: HBL-WH-4
- UNSPSC: 39131708
CAD
$23.62
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
1-1/4" Zinc Weather Proof Conduit Hub
Features
- Oversized locknut provides for a strong vibration-proof termination
- Captive sealing ring
- Serrations on hub body and locknut provide effective positive ground path
- Insulated throat protects conductors
- Oversized locknut provides for a strong vibration-proof termination. Captive sealing ring. Serrations on hub body and locknut provide effective positive ground path. Rugged cast zinc construction. Insulated throat protects conductors. Suitable for use wit
Documentation & Downloads
Specifications
Key Specifications
- Finish
- Natural
- ARRA Compliant
- Contact Manufacturer
- Color
- Gray
- Hazardous Rating(s)
- Suitable for use in hazardous location applications when installed according to NEC Articles 501.10(b) (Class I, Division 2) or 502.10, 503.10, and 505.15 (Class I Zone 2).
- Hub Size
- 1-1/4"
- Width
- 2.37 in
- Finish Type
- Natural
- Class Code
- D30
- Freight Class Code
- 06316009
- Image Actual Or Representative
- R
- MSDS Flag
- No
- Returnable Indicator
- Yes
- Gross Weight with Packaging
- 0.52
- Series
- WH Series
- BOX SIZE
- 6.125x9.125x8.750 (in)
- Carton - Number of Sub Packs
- 30
- Carton - SCC-14 Next Lower Level Sub Pack
- 00783936841830
- Master Pack Description
- Each
Special FeaturesOversized locknut provides for a strong vibration-proof termination. Captive sealing ring. Serrations on hub body and locknut provide effective positive ground path. Rugged cast zinc construction. Insulated throat protects conductors. Suitable for use wit
Country of OriginIndia
Dimensions2.37 in x 2.37 in x 1.877 in
Height1.877 in
Length2.37 in
ApplicationConduit hubs provide a liquid tight, oil tight and dust tight termination of electrical conduit through the walls of sheet metal enclosures. The hubs fit into standard knock-out dimensions.
TypeWeatherproof Conduit Hub
Description - InvoiceWEATHERPROOF CONDUIT HUB 1 1/4
Harmonization Code7907009101
Lead Time21 wk
Order Multiple1 EA
Sub Class CodeD30D236
MaterialZinc
Base Unit of MeasureEA
Carton - Gross Weight per Pack15.600 lb.
Carton - Pack DescriptionCarton
Carton - Total Units30 EA
NAICS Code3359323110
