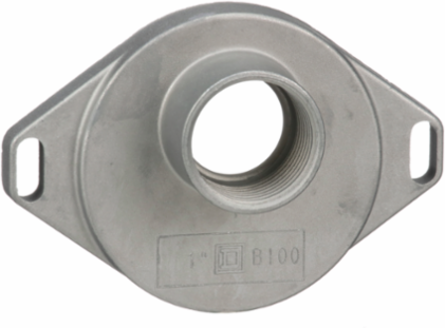

Schneider Electric B100 Load Center Bolt-On Hub, Rainproof, 1 Inch, UL Listed
- MPN: B100
- UPC: 785901459422
- PPN: SCH-B100
- UNSPSC: 39121601
CAD
$48.94
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Industrial Circuit Breaker Enclosures are designed to be tough, reliable and provide exceptional performance in the most grueling conditions. Provides a dead front housing for circuit breakers, molded case switches, and motor circuit protectors to prevent personnel from accidentally contacting energized parts. Designed to meet or exceed UL 50 requirements for specific environmental conditions. Allow breaker operation without removing cover. These units are UL Listed and CSA Certified. Square D equipment with “R’’ or “RB’’ suffix, designated NEMA 3R rainproof construction, utilizes bolt-on hubs listed below. “RB’’ devices will accept 3/4 in. through 2- 1/2 in. bolt-on hubs without the use of reducers. Off-center conduit thread openings and elongated mounting holes provide quick and easy adjustment to eliminate costly conduit offsets and bends. Load Center Hub, 1 in, rainproof, for RB devices is a conduit entry, and is used for conduit installation. This bolt-on accessory has a UL listed rating. The dimensions are 1.38 mm(H)4.44 mm(W)3.09 mm(D). This product comes with an 18 month warranty.
Features
- Specifically engineered for demanding outdoor environments, the Schneider Electric Square D B100 provides a strict rainproof seal that prevents moisture from breaching top-feed conduit entries. Adding this commercial-grade hub to your enclosure maintains its NEMA 3R weather rating, effectively safeguarding internal circuit breakers and live components against short circuits, corrosion, and severe weather damage.

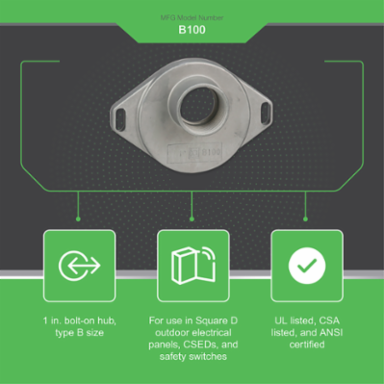

- Featuring a standard 1.00-inch NPT threaded opening, this Type B bolt-on hub acts as a robust, direct conduit interface for intermediate or rigid metallic conduits. This precise sizing ensures a tight, reliable mechanical connection that code inspectors look for, preventing loose raceway entries and ensuring a continuous, reliable pathway for your field wiring.
- Designed for ultimate job site flexibility, the B100 mounts seamlessly onto any Square D equipment with an "R" or "RB" catalog suffix, including QO and Homeline outdoor panels, meter sockets, and heavy-duty safety switches. Because these enclosures are factory-machined to accept Type B hubs directly, you can bolt it on instantly without modifying the box or ordering expensive reducers and adapters.
- This hub is intentionally engineered with an off-center thread design and elongated mounting paths to simplify field installation. This smart geometric layout allows field electricians to quickly rotate and adjust the hub position, eliminating the need for tedious, time-consuming conduit offsets or corrective pipe bends when aligning with pre-existing wall runs.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | India |
|---|
| Depth | 3.09 in |
|---|
Important Information Attributes
| Persona Type Ids | LC, OM, OM8, PB |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Traceability | No |
| Weee Scope | In |
| Scope Perimeter | Outside of Europe |
| Reach Full Compliance Status | Free of Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Free of Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Without Single Use Plastic | No |
| Tier Id | 1 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Energy Efficiency Optimized | False |
| Product Availability | Stock - Normally stocked in distribution facility |
| Returnability | Yes |
| Height Nominal | 1.4 in |
| Certificate Agency | UL Listed |
| Customs Code | 7907002000 |
| Persona Type Names | Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Local Publishable Date | 2026-09-04 |
| Serviceability | No |
| Field Service Division | PPIBS |
| Weee Product Category | 4 |
| Eoli Availability Display | No need of specific recycling operations |
| Reach Full Compliance Status Id | NOT_CONTAINING_SVHC |
| Rohs Eur In Scope | Yes |
| Rohs Eur Conformity Date | 1904 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | No |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 1 |
| Function Option | Standard |
| Cable Entry | conduit entry 1-1 in |
| Hub Type | B |
| Product Or Component Type | hub |
| Sustainable Packaging | No |
| Width Nominal | 4.44 in |
| Nbr. Of Units In Pkg. | 1 |
| Warranty In Months | 18 |
Environment Attributes Main
| Take Back | No |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Toxic Heavy Metal Free | Yes |
| Eu Rohs Directive | Compliant |
| Packaging Without Single Use Plastic | No |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Reach Free Shvc | Yes |
|---|---|
| China Rohs Regulation | X |
| Mercury Free | Yes |
| Packaging Made With Recycled Cardboard | No |
| Reach Free Of Svhc | Yes |
General Attributes
| Product Or Component Type | hub |
|---|
Contractual Warranty Attributes
| Warranty | 18 months |
|---|
