Documentation & Downloads

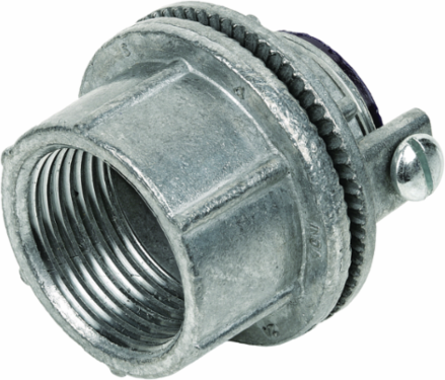

Killark WH-4G 1-1/4 Inch Zinc Weatherproof Conduit Hub with Ground, Vibration-Proof Locknut
- MPN: WH-4G
- UPC: 783936074719
- PPN: HBL-WH-4G
- UNSPSC: 39131708
CAD
$33.89
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
1-1/4" Zinc Weather Proof Conduit Hub w/ Ground
Features
- Oversized locknut provides for a strong vibration-proof termination
- Captive sealing ring
- Serrations on hub body and locknut provide effective positive ground path
- Insulated throat protects conductors
- Oversized locknut provides for a strong vibration-proof termination. Captive sealing ring. Serrations on hub body and locknut provide effective positive ground path. Rugged cast zinc construction. Insulated throat protects conductors. Suitable for use wit
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- India
- Hazardous Rating(s)
- Suitable for use in hazardous location applications when installed according to NEC Articles 501.10(b) (Class I, Division 2) or 502.10, 503.10, and 505.15 (Class I Zone 2).
- Color
- Gray
- Height
- 1.877 in
- Length
- 2.37 in
- Type
- Weatherproof Conduit Hub With Ground Screw
- Finish Type
- Natural
- Class Code
- D30
- Freight Class Code
- 06316009
- Image Actual Or Representative
- R
- MSDS Flag
- No
- Returnable Indicator
- Yes
- Gross Weight with Packaging
- 0.54
- Series
- WH Series
- BOX SIZE
- 6.000x8.625x8.500 (in)
- Carton - Number of Sub Packs
- 30
- Carton - SCC-14 Next Lower Level Sub Pack
- 00783936074719
- Master Pack Description
- Each
Dimensions2.37 in x 2.37 in x 1.877 in
ApplicationConduit hubs provide a liquid tight, oil tight and dust tight termination of electrical conduit through the walls of sheet metal enclosures. The hubs fit into standard knock-out dimensions.
FinishNatural
Hub Size1-1/4"
Special FeaturesOversized locknut provides for a strong vibration-proof termination. Captive sealing ring. Serrations on hub body and locknut provide effective positive ground path. Rugged cast zinc construction. Insulated throat protects conductors. Suitable for use wit
Width2.37 in
ARRA CompliantContact Manufacturer
Description - InvoiceHUB, 1-1/4" CONDUIT WPRF W/ GRD SCR
Harmonization Code8547900030
Lead Time28 wk
Order Multiple1 EA
Sub Class CodeD30D236
MaterialZinc
Base Unit of MeasureEA
Carton - Gross Weight per Pack14.400 lb.
Carton - Pack DescriptionCarton
Carton - Total Units30
NAICS Code3359323110
