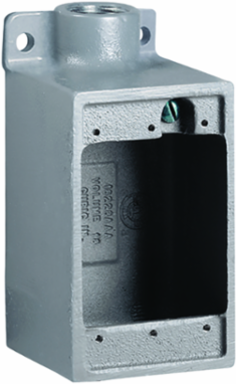

Killark FD-1 Aluminum Deep Dead End Device Box ½ Inch, 1 Outlet, NPT Tapered Threads
Killark FD-1 Aluminum Deep Dead End Device Box ½ Inch, 1 Outlet, NPT Tapered Threads
- MPN: FD-1
- UPC: 783936150017
- PPN: HBL-FD-1
- UNSPSC: 39121308
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$46.65/ EA
Description
½"Aluminum, Deep Dead End Device Box
Features
- Tapered threads (NPT with integral bushings)
- Internal grounding screw
- Mounting feet are provided as standard
- Suitable for use in wet locations when used with gasket covers
- Cast iron is suitable for concrete use
- Tapered threads (NPT with integral bushings). Internal grounding screw. Optional mounting feet available. Single gang style. Suitable for use in wet locations when used with gasket covers. For use with FS-style covers (see pages F40-F42).
Specifications
Specifications
- Country of Origin
- US
- Each - Width
- 1.000 in
- Hub Size
- 1/2"
- Application
- Accommodates wiring devices and provides opening to splice, tap, or pull conductors. Provide access to conductors for maintenance and future system changes.
- Number of Outlet
- 1
- Special Features
- Tapered threads (NPT with integral bushings). Internal grounding screw. Optional mounting feet available. Single gang style. Suitable for use in wet locations when used with gasket covers. For use with FS-style covers (see pages F40-F42).
- Weight
- 0.83 lb.
- Finish Type
- Powder Epoxy Paint
- ARRA Compliant
- Contact Manufacturer
- Description - Invoice
- 1/2" KILLARK ALUM DEEP DVCE BX TYPE FD
- Harmonization Code
- 7616995190
- Lead Time
- 42 wk
- Order Multiple
- 1 EA
- Sub Class Code
- D30D233
- Gross Weight with Packaging
- 0.83
- UL File Number
- E3397
- Series
- F Series
- BOX SIZE
- 5.000x15.250x6.750 (in)
- Carton - Number of Sub Packs
- 5
- Carton - SCC-14 Next Lower Level Sub Pack
- 00783936150017
- Master Pack Description
- Each
Dimensions1 in x 1 in x 3 in
Height3 in
Length1 in
ColorGray
Size1 in x 1 in x 3 in
TypeDevice Box
Width1 in
Number Of Outlets1
Class CodeD30
Freight Class Code06316009
Image Actual Or RepresentativeR
MSDS FlagNo
Returnable IndicatorYes
CSA File NumberLR11852
Hub PatternDead-End
MaterialAluminum, Copper Free (less than 4/10 of 1%)
Base Unit of MeasureEA
Carton - Gross Weight per Pack4.150 lb.
Carton - Pack DescriptionCarton
Carton - Total Units5 EA
Certifications
- EU RoHS Indicator
- Contact Manufacturer
