Killark FDS-2 Aluminum 3/4 Inch Deep Device Box, 15 Inch Length, Internal Grounding Screw
- MPN: FDS-2
- UPC: 783936374802
- PPN: HBL-FDS-2
- UNSPSC: 39131708
CAD
$106.17
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description

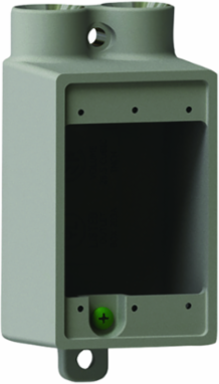

3/4"Aluminum, FDS Type Deep Device Box
Features
- Tapered threads (NPT with integral bushings)
- Internal grounding screw
- Mounting feet are provided as standard
- Suitable for use in wet locations when used with gasket covers
- Cast iron is suitable for concrete use
- Tapered threads (NPT with integral bushings). Internal grounding screw. Single gang style. Suitable for use in wet locations when used with gasket covers. For use with FS-style covers (see pages F40-F42). Volume is 8.5 cu. in.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | United States |
|---|---|
| Application | Accommodates wiring devices and provides opening to splice, tap, or pull conductors. Provide access to conductors for maintenance and future system changes. |
| Finish | Powder Epoxy Paint |
| Hub Size | 3/4" |
| Special Features | Tapered threads (NPT with integral bushings). Internal grounding screw. Single gang style. Suitable for use in wet locations when used with gasket covers. For use with FS-style covers (see pages F40-F42). Volume is 8.5 cu. in. |
| Width | 6.63 in |
| ARRA Compliant | Contact Manufacturer |
| Description - Invoice | 3/4" FD BOX DEEP "S" ALUMINUM |
| Harmonization Code | 7616995190 |
| Lead Time | 42 wk |
| Order Multiple | 1 EA |
| Sub Class Code | D30D233 |
| Gross Weight with Packaging | 0.95 |
| UL File Number | E3397 |
| Series | F Series |
| BOX SIZE | (in) |
| Master Pack Description | Each |
| Dimensions | 15 in x 6.63 in x 4.5 in |
|---|---|
| Color | Gray |
| Height | 4.5 in |
| Length | 15 in |
| Type | Device Box |
| Finish Type | Powder Epoxy Paint |
| Class Code | D30 |
| Freight Class Code | 06316009 |
| Image Actual Or Representative | R |
| MSDS Flag | No |
| Returnable Indicator | Yes |
| CSA File Number | LR11852 |
| Hub Pattern | Dead-End |
| Material | Aluminum, Copper Free (less than 4/10 of 1%) |
| Base Unit of Measure | EA |
| Carton - SCC-14 Next Lower Level Sub Pack | 00783936374802 |
| NAICS Code | 3359326103 |
