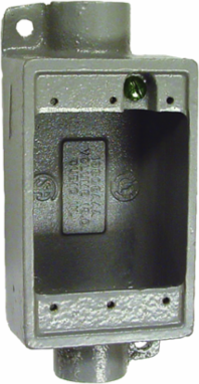

Killark FDC-1 ½ Inch Aluminum Deep Feed Thru Device Box, Gray, Size 1 in x 1 in x 3 in
Killark FDC-1 ½ Inch Aluminum Deep Feed Thru Device Box, Gray, Size 1 in x 1 in x 3 in
- MPN: FDC-1
- UPC: 783936150079
- PPN: HBL-FDC-1
- UNSPSC: 39121308
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$59.98/ EA
Description
½"Aluminum, Deep Feed Thru Device Box
Features
- Tapered threads (NPT with integral bushings)
- Internal grounding screw
- Mounting feet are provided as standard
- Suitable for use in wet locations when used with gasket covers
- Cast iron is suitable for concrete use
- Tapered threads (NPT with integral bushings). Internal grounding screw. Optional mounting feet available. Single gang style. Suitable for use in wet locations when used with gasket covers. For use with FS-style covers (see pages F40-F42).
Specifications
Specifications
- Country of Origin
- Mexico
- Height
- 3 in
- Length
- 1 in
- Color
- Gray
- Size
- 1 in x 1 in x 3 in
- Type
- Device Box
- Engineering Drawing 1 Display Text
- FDC-1 Engineering Drawing
- Number Of Outlets
- 1
- Class Code
- D30
- Freight Class Code
- 06316009
- Image Actual Or Representative
- R
- MSDS Flag
- No
- Returnable Indicator
- Yes
- CSA File Number
- LR11852
- Hub Pattern
- Feed-Thru
- Material
- Aluminum, Copper Free (less than 4/10 of 1%)
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 4.350 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 5 EA
Dimensions1 in x 1 in x 3 in
Hub Size1/2"
ApplicationAccommodates wiring devices and provides opening to splice, tap, or pull conductors. Provide access to conductors for maintenance and future system changes.
Number of Outlet1
Special FeaturesTapered threads (NPT with integral bushings). Internal grounding screw. Optional mounting feet available. Single gang style. Suitable for use in wet locations when used with gasket covers. For use with FS-style covers (see pages F40-F42).
Width1 in
Finish TypePowder Epoxy Paint
ARRA CompliantContact Manufacturer
Description - Invoice1/2" KILLARK ALUM DEEP DVCE BX TYPE FDC
Harmonization Code7616995190
Lead Time42 wk
Order Multiple1 EA
Sub Class CodeD30D233
Gross Weight with Packaging0.87
UL File NumberE3397
SeriesF Series
BOX SIZE5.000x15.625x6.875 (in)
Carton - Number of Sub Packs5
Carton - SCC-14 Next Lower Level Sub Pack00783936150079
Master Pack DescriptionEach
Certifications
- EU RoHS Indicator
- Contact Manufacturer
