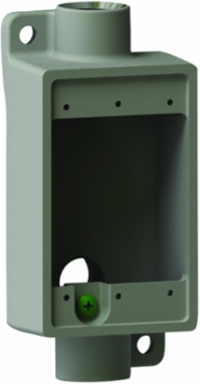

Killark FSCA-1 1/2 Inch Aluminum Shallow Device Box, NPT Threads, 18 cu in Volume
- MPN: FSCA-1
- UPC: 783936192321
- PPN: HBL-FSCA-1
- UNSPSC: 39131708
CAD
$112.40
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
1/2"Aluminum, FSCA Type Shallow Device Box
Features
- Tapered threads (NPT with integral bushings)
- Internal grounding screw
- Mounting feet are provided as standard
- Suitable for use in wet locations when used with gasket covers
- Cast iron is suitable for concrete use
- Tapered threads (NPT with integral bushings). Internal grounding screw. Single gang style. Suitable for use in wet locations when used with gasket covers. For use with FS-style covers (see pages F40-F42). Volume is 18 cu. in.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
- Application
- Accommodates wiring devices and provides opening to splice, tap, or pull conductors. Provide access to conductors for maintenance and future system changes.
- Finish
- Powder Epoxy Paint
- Hub Size
- 1/2"
- Special Features
- Tapered threads (NPT with integral bushings). Internal grounding screw. Single gang style. Suitable for use in wet locations when used with gasket covers. For use with FS-style covers (see pages F40-F42). Volume is 18 cu. in.
- Width
- 1 in
- Finish Type
- Powder Epoxy Paint
- Class Code
- D30
- Freight Class Code
- 06316009
- Image Actual Or Representative
- R
- MSDS Flag
- No
- Returnable Indicator
- Yes
- CSA File Number
- LR11852
- Hub Pattern
- FSCA
- Material
- Aluminum, Copper Free (less than 4/10 of 1%)
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 3.800 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 4 EA
- NAICS Code
- 3359326103
Dimensions1 in x 1 in x 2 in
ColorGray
Height2 in
Length1 in
TypeDevice Box
Engineering Drawing 1 Display TextFSCA-1 Engineering Drawing
ARRA CompliantContact Manufacturer
Description - Invoice1/2" FS BOX SHAL."CA: ALUMINUM
Harmonization Code7616995190
Lead Time42 wk
Order Multiple1 EA
Sub Class CodeD30D233
Gross Weight with Packaging0.95
UL File NumberE3397
SeriesF Series
BOX SIZE0.000x0.000x0.000 (in)
Carton - Number of Sub Packs4
Carton - SCC-14 Next Lower Level Sub Pack00783936192321
Master Pack DescriptionEach
Certifications
- EU RoHS Indicator
- Contact Manufacturer
