Killark FSLB-1 Aluminum Feed Thru Device Box 1/2 Inch, 1 Outlet, 1 in x 1 in x 2 in
Killark FSLB-1 Aluminum Feed Thru Device Box 1/2 Inch, 1 Outlet, 1 in x 1 in x 2 in
- MPN: FSLB-1
- UPC: 783936190310
- PPN: HBL-FSLB-1
- UNSPSC: 39121308
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$71.34/ EA
Description

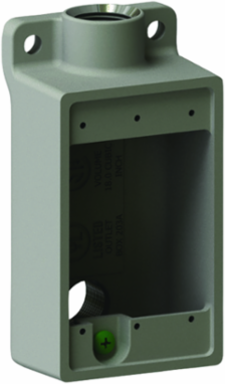

1/2"Aluminum, FSLB Type Shallow Feed Thru Device Box
Features
- Tapered threads (NPT with integral bushings)
- Internal grounding screw
- Mounting feet are provided as standard
- Suitable for use in wet locations when used with gasket covers
- Cast iron is suitable for concrete use
- Tapered threads (NPT with integral bushings). Internal grounding screw. Single gang style. Suitable for use in wet locations when used with gasket covers. For use with FS-style covers (see pages F40-F42).
Specifications
Specifications
- Country of Origin
- MX
- Each - Width
- 1.000 in
- Hub Size
- 1/2"
- Application
- Accommodates wiring devices and provides opening to splice, tap, or pull conductors. Provide access to conductors for maintenance and future system changes.
- Number of Outlet
- 1
- Special Features
- Tapered threads (NPT with integral bushings). Internal grounding screw. Single gang style. Suitable for use in wet locations when used with gasket covers. For use with FS-style covers (see pages F40-F42).
- Width
- 1 in
- Number Of Outlets
- 1
- Class Code
- D30
- Freight Class Code
- 06316009
- Image Actual Or Representative
- R
- MSDS Flag
- No
- Returnable Indicator
- Yes
- CSA File Number
- LR11852
- Hub Pattern
- Feed-Thru
- Material
- Aluminum, Copper Free (less than 4/10 of 1%)
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 4.150 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 5 EA
Dimensions1 in x 1 in x 2 in
Height2 in
Length1 in
ColorGray
Size1 in x 1 in x 2 in
TypeDevice Box
Finish TypePowder Epoxy Paint
ARRA CompliantContact Manufacturer
Description - Invoice1/2" K ALUM SHALLOW FEED THRU TYPE FSLB
Harmonization Code7616995190
Lead Time42 wk
Order Multiple1 EA
Sub Class CodeD30D233
Gross Weight with Packaging0.83
UL File NumberE3397
SeriesF Series
BOX SIZE4.000x12.000x7.250 (in)
Carton - Number of Sub Packs5
Carton - SCC-14 Next Lower Level Sub Pack00783936190310
Master Pack DescriptionEach
Certifications
- EU RoHS Indicator
- Contact Manufacturer
