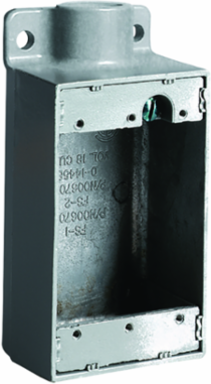

Killark FS-1 ½ Inch Aluminum Shallow Dead End Device Box, 1 in x 1 in x 2 in, Gray
Killark FS-1 ½ Inch Aluminum Shallow Dead End Device Box, 1 in x 1 in x 2 in, Gray
- MPN: FS-1
- UPC: 783936190013
- PPN: HBL-FS-1
- UNSPSC: 39121308
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$38.63/ EA
Description
½"Aluminum, Shallow Dead End Device Box
Features
- Tapered threads (NPT with integral bushings)
- Internal grounding screw
- Mounting feet are provided as standard
- Suitable for use in wet locations when used with gasket covers
- Cast iron is suitable for concrete use
- Tapered threads (NPT with integral bushings). Internal grounding screw. Optional mounting feet available. Single gang style. Suitable for use in wet locations when used with gasket covers. For use with FS-style covers (see pages F40-F42).
Specifications
Specifications
- Number of Outlet
- 1
- Special Features
- Tapered threads (NPT with integral bushings). Internal grounding screw. Optional mounting feet available. Single gang style. Suitable for use in wet locations when used with gasket covers. For use with FS-style covers (see pages F40-F42).
- Color
- Gray
- Dimensions
- 1 in x 1 in x 2 in
- Height
- 2 in
- Length
- 1 in
- Width
- 1 in
- Finish Type
- Powder Epoxy Paint
- Type
- Device Box
- Description - Invoice
- 1/2" KILLARK ALM SHALLOW DV BX TYPE FS
- Harmonization Code
- 7616999999
- Lead Time
- 42 wk
- Order Multiple
- 1 EA
- Sub Class Code
- D30D233
- Gross Weight with Packaging
- 0.7
- UL File Number
- E3397
- Series
- F Series
- BOX SIZE
- 4.125x11.750x7.500 (in)
- Carton - Number of Sub Packs
- 5
- Carton - SCC-14 Next Lower Level Sub Pack
- 00783936190013
- Master Pack Description
- Each
Size1 in x 1 in x 2 in
ARRA CompliantContact Manufacturer
Country of OriginUS
Each - Width1.000 in
Hub Size1/2"
Weight0.7 lb.
ApplicationAccommodates wiring devices and provides opening to splice, tap, or pull conductors. Provide access to conductors for maintenance and future system changes.
Number Of Outlets1
Class CodeD30
Freight Class Code06316009
Image Actual Or RepresentativeR
MSDS FlagNo
Returnable IndicatorYes
CSA File NumberLR11852
Hub PatternDead-End
MaterialAluminum, Copper Free (less than 4/10 of 1%)
Base Unit of MeasureEA
Carton - Gross Weight per Pack3.500 lb.
Carton - Pack DescriptionCarton
Carton - Total Units5 EA
Certifications
- EU RoHS Indicator
- Contact Manufacturer
