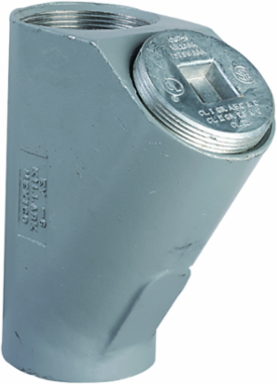

Killark EY-1 1/2 Inch Aluminum Female/Female EY Seal Fitting, NPT Tapped Hubs, Powder Coated
- MPN: EY-1
- UPC: 783936110011
- PPN: HBL-EY-1
CAD
$16.66
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
1/2" EY Seal Fitting Aluminum, Female/Female
Features
- Large opening for easy packing of fiber and pouring of compound
- Integral bushings in conduit hubs to protect conductor insulation from damage
- NPT tapped hubs to ensure ground continuity
- 25% conductor fill
- EY-T style supplied with removable close nipples
- Copper-free aluminum (less than 4/10 of 1%). Electrostatically applied powder coating.
Documentation & Downloads
Specifications
Key Specifications
- ARRA Compliant
- Contact Manufacturer
- Color
- Gray
- Hazardous Rating(s)
- Class I, Divisions 1 & 2, Groups C, D;Class I, Zones 1 & 2, Groups IIB, IIA;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2
- Hub Size
- 1/2"
- Width
- 10 in
- Finish Type
- Powder Epoxy Paint
- Class Code
- D30
- Freight Class Code
- 06316009
- Image Actual Or Representative
- R
- MSDS Flag
- No
- Replaced Catalog Number
- EY-50
- Sub Class Code
- D30D237
- Gross Weight with Packaging
- 0.32
- Material
- Aluminum, Copper Free (less than 4/10 of 1%)
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 8.000 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 25
- NAICS Code
- 3359323114
Country of OriginMexico
Dimensions5 in x 10 in x 0.1 in
Height0.1 in
Length5 in
ApplicationClass I, Divisions 1 and 2: The purpose of seals in a Class I hazardous location is to minimize the passage of gases and vapors and prevent the passage of flames from one electrical installation to another through the conduit system. Seals are required to
TypeSealing Fitting
Description - InvoiceSEAL FTG AL 1/2" FEMAL/FEMAL
Harmonization Code7609000299
Lead Time42 wk
Order Multiple1 EA
Returnable IndicatorYes
CSA File NumberLR11716
UL File NumberE10514
SeriesEY Series
BOX SIZE5.750x11.500x10.500 (in)
Carton - Number of Sub Packs25
Carton - SCC-14 Next Lower Level Sub Pack00783936110011
Master Pack DescriptionEach
