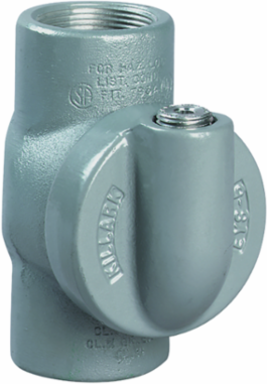

Killark EYS-2 ¾ Inch Aluminum EYS Seal Fitting, Female/Female, Copper-Free, Hazardous Location
Killark EYS-2 ¾ Inch Aluminum EYS Seal Fitting, Female/Female, Copper-Free, Hazardous Location
- MPN: EYS-2
- UPC: 783936110127
- PPN: HBL-EYS-2
- UNSPSC: 39131708
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To view product inventory
CAD$51.89/ EA
Description
¾" EYS Seal Fitting Aluminum, Female/Female
Features
- Large opening for easy packing of fiber and pouring of compound
- Integral bushings in conduit hubs to protect conductor insulation from damage
- NPT tapped hubs to ensure ground continuity
- 25% conductor fill
- EYS-T style supplied with removable close nipples
- Copper-free aluminum (less than 4/10 of 1%). Electrostatically applied powder coating.
Specifications
Specifications
- Finish
- Powder Epoxy Paint
- ARRA Compliant
- Contact Manufacturer
- Country of Origin
- MX
- Each - Width
- 4.750 in
- Height
- 2.75 in
- Length
- 4.75 in
- Width
- 4.75 in
- Finish Type
- Powder Epoxy Paint
- Class Code
- D30
- Freight Class Code
- 06316009
- Image Actual Or Representative
- R
- MSDS Flag
- No
- Returnable Indicator
- Yes
- CSA File Number
- LR11716
- UL File Number
- E10514
- Series
- EYS Series
- BOX SIZE
- 4.000x7.750x5.750 (in)
- Carton - Number of Sub Packs
- 5
- Carton - SCC-14 Next Lower Level Sub Pack
- 00783936110127
- Master Pack Description
- Each
Special FeaturesCopper-free aluminum (less than 4/10 of 1%). Electrostatically applied powder coating.
ColorGray
Dimensions4.75 in x 4.75 in x 2.75 in
Hazardous Rating(s)Class I, Divisions 1 & 2, Groups C, D;Class I, Zones 1 & 2, Groups IIB, IIA;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2
Hub Size3/4"
Weight0.42 lb.
ApplicationClass I, Divisions 1 and 2: The purpose of seals in a Class I hazardous location is to minimize the passage of gases and vapors and prevent the passage of flames from one electrical installation to another through the conduit system. Seals are required to
TypeSealing Fitting
Description - InvoiceEYS SEAL FTG AL 3/4" FEMAL/FEMAL
Harmonization Code7609000299
Lead Time42 wk
Order Multiple1 EA
Sub Class CodeD30D237
Gross Weight with Packaging0.42
MaterialAluminum, Copper Free (less than 4/10 of 1%)
Base Unit of MeasureEA
Carton - Gross Weight per Pack2.100 lb.
Carton - Pack DescriptionCarton
Carton - Total Units5 EA
Certifications
- EU RoHS Indicator
- Contact Manufacturer
