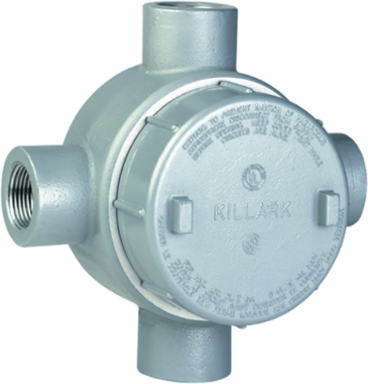

Killark GECXT-1 ½ Inch Outlet Body X Type, Hazardous Location, Aluminum, 6.25 x 6 x 4.25 Inch
Killark GECXT-1 ½ Inch Outlet Body X Type, Hazardous Location, Aluminum, 6.25 x 6 x 4.25 Inch
- MPN: GECXT-1
- UPC: 783936210148
- PPN: HBL-GECXT-1
- UNSPSC: 39121314
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$124.18/ EA
Description
½" GEC Outlet Body X Type
Features
- Water shedding cover – suitable for wet locations when mounted in upright position.
- External cover threads on body protecting conductors from damage during pulling.
- No pinching of conductors during cover installation.
- Taper threaded hubs to provide ground continuity.
- Smooth integral hub bushing to protect conductor insulation when pulling.
- Internally threaded cover openings for additional wiring room.
- Covers furnished with boxes.
- Weather-resistant finish.
- Green ground screw standard.
- GE conduit outlet boxes have: GEC Series has water shedding cover - suitable for wet locations when mounted in upright position; external cover threads on body protecting conductors from damage during pulling; no pinching of conductors during cover instal
Specifications
Specifications
- Size
- 6.25 in x 6 in x 4.25 in
- ARRA Compliant
- Contact Manufacturer
- Color
- Gray
- Hazardous Rating(s)
- Class I, Divisions 1 & 2, Groups C, D;Class I, Zones 1 & 2, Groups IIB, IIA
- Hub Size
- 1/2"
- Width
- 6 in
- Finish Type
- Powder Epoxy Paint
- Class Code
- D30
- Freight Class Code
- 06316009
- Image Actual Or Representative
- R
- MSDS Flag
- No
- Returnable Indicator
- Yes
- CSA File Number
- LR11716
- Hub Pattern
- X
- Material
- Aluminum, Copper Free (less than 4/10 of 1%)
- Base Unit of Measure
- EA
- Master Pack Description
- Each
Special FeaturesGE conduit outlet boxes have: GEC Series has water shedding cover - suitable for wet locations when mounted in upright position; external cover threads on body protecting conductors from damage during pulling; no pinching of conductors during cover instal
Country of OriginMexico
Dimensions6.25 in x 6 in x 4.25 in
Height4.25 in
Length6.25 in
ApplicationConduit boxes installed in conduit systems within hazardous areas to: protect conductors in threaded rigid conduit, act as pull and splice boxes, interconnect lengths of conduit, change conduit direction, and provide access to conductors for maintenance and future system changes.
TypeOutlet Body With Cover
Description - Invoice1/2" ALUM OUTLET BODY X TYPE 2
Harmonization Code7609000299
Lead Time42 wk
Order Multiple1 EA
Sub Class CodeD30D237
Gross Weight with Packaging2.01
UL File NumberE10514
SeriesGE Series
Carton - SCC-14 Next Lower Level Sub Pack00783936210148
Certifications
- EU RoHS Indicator
- Contact Manufacturer
