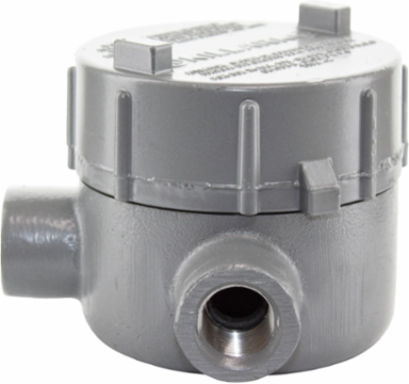

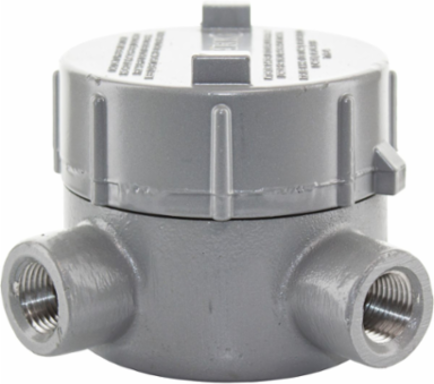

Killark GECLT-3M 1 Inch Outlet Body L-Type, Iron, Hazardous Locations, Weather-Resistant
- MPN: GECLT-3M
- UPC: 783936210865
- PPN: HBL-GECLT-3M
- UNSPSC: 39121314
CAD
$222.72
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
1" GEC Outlet Body L-Type, Iron
Features
- Water shedding cover – suitable for wet locations when mounted in upright position.
- External cover threads on body protecting conductors from damage during pulling.
- No pinching of conductors during cover installation.
- Taper threaded hubs to provide ground continuity.
- Smooth integral hub bushing to protect conductor insulation when pulling.
- Internally threaded cover openings for additional wiring room.
- Covers furnished with boxes.
- Weather-resistant finish.
- Green ground screw standard.
- GE conduit outlet boxes have: GEC Series has water shedding cover - suitable for wet locations when mounted in upright position; external cover threads on body protecting conductors from damage during pulling; no pinching of conductors during cover instal
Documentation & Downloads
Specifications
Key Specifications
| Size | 7.5 in x 5.75 in x 4 in |
|---|---|
| ARRA Compliant | Contact Manufacturer |
| Color | Gray |
| Hazardous Rating(s) | Class I, Divisions 1 & 2, Groups C, D;Class I, Zones 1 & 2, Groups IIB, IIA |
| Hub Size | 1" |
| Width | 5.75 in |
| Finish Type | Powder Epoxy Paint |
| Class Code | D30 |
| Freight Class Code | 06316009 |
| Image Actual Or Representative | R |
| MSDS Flag | No |
| Returnable Indicator | Yes |
| CSA File Number | LR11716 |
| Hub Pattern | L |
| Material | Iron |
| Base Unit of Measure | EA |
| Carton - SCC-14 Next Lower Level Sub Pack | 00783936210865 |
| NAICS Code | 3359326103 |
| Special Features | GE conduit outlet boxes have: GEC Series has water shedding cover - suitable for wet locations when mounted in upright position; external cover threads on body protecting conductors from damage during pulling; no pinching of conductors during cover instal |
|---|---|
| Country of Origin | United States |
| Dimensions | 7.5 in x 5.75 in x 4 in |
| Height | 4 in |
| Length | 7.5 in |
| Application | Conduit boxes installed in conduit systems within hazardous areas to: protect conductors in threaded rigid conduit, act as pull and splice boxes, interconnect lengths of conduit, change conduit direction, and provide access to conductors for maintenance and future system changes. |
| Type | Outlet Body With Cover |
| Description - Invoice | OUTLET BODY 1" FE TYPE L |
| Harmonization Code | 7307199999 |
| Lead Time | 42 wk |
| Order Multiple | 1 EA |
| Sub Class Code | D30D237 |
| Gross Weight with Packaging | 3.8 |
| UL File Number | E10514 |
| Series | GE Series |
| BOX SIZE | (in) |
| Master Pack Description | Each |
