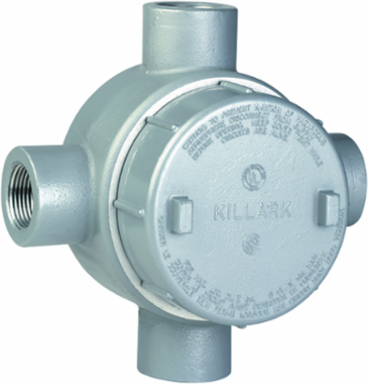

Killark GECXT-1M 1/2 Inch GEC Outlet Body X Type, Iron, Hazardous Location, Weather-Resistant Finish
- MPN: GECXT-1M
- UPC: 783936211008
- PPN: HBL-GECXT-1M
- UNSPSC: 39121314
CAD
$205.52
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
1/2" GEC Outlet Body X Type, Iron
Features
- Water shedding cover – suitable for wet locations when mounted in upright position.
- External cover threads on body protecting conductors from damage during pulling.
- No pinching of conductors during cover installation.
- Taper threaded hubs to provide ground continuity.
- Smooth integral hub bushing to protect conductor insulation when pulling.
- Internally threaded cover openings for additional wiring room.
- Covers furnished with boxes.
- Weather-resistant finish.
- Green ground screw standard.
- GE conduit outlet boxes have: GEC Series has water shedding cover - suitable for wet locations when mounted in upright position; external cover threads on body protecting conductors from damage during pulling; no pinching of conductors during cover instal
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
- Hazardous Rating(s)
- Class I, Divisions 1 & 2, Groups C, D;Class I, Zones 1 & 2, Groups IIB, IIA
- Hub Size
- 1/2"
- Color
- Gray
- Size
- 6.375 in x 5.875 in x 4.375 in
- Type
- Outlet Body With Cover
- Finish Type
- Powder Epoxy Paint
- Class Code
- D30
- Freight Class Code
- 06316009
- Image Actual Or Representative
- R
- MSDS Flag
- No
- Returnable Indicator
- Yes
- CSA File Number
- LR11716
- Hub Pattern
- X
- Material
- Iron
- Base Unit of Measure
- EA
- Carton - SCC-14 Next Lower Level Sub Pack
- 00783936211008
- NAICS Code
- 3359326103
Dimensions6.375 in x 5.875 in x 4.375 in
Height4.375 in
ApplicationConduit boxes installed in conduit systems within hazardous areas to: protect conductors in threaded rigid conduit, act as pull and splice boxes, interconnect lengths of conduit, change conduit direction, and provide access to conductors for maintenance and future system changes.
Length6.375 in
Special FeaturesGE conduit outlet boxes have: GEC Series has water shedding cover - suitable for wet locations when mounted in upright position; external cover threads on body protecting conductors from damage during pulling; no pinching of conductors during cover instal
Width5.875 in
ARRA CompliantContact Manufacturer
Description - Invoice.5 IN IRON OUTLET BODY X TYPE
Harmonization Code7307199060
Lead Time42 wk
Order Multiple1 EA
Sub Class CodeD30D237
Gross Weight with Packaging4.06
UL File NumberE10514
SeriesGE Series
BOX SIZE(in)
Master Pack DescriptionEach
Certifications
- EU RoHS Indicator
- Contact Manufacturer
