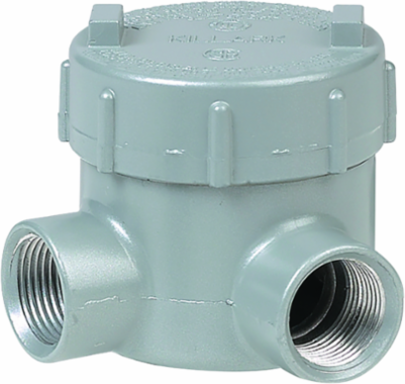

Killark GEML-1 ½ Inch L-Type Outlet Body, Aluminum, Weather-Resistant, 3.75 Inch Height
- MPN: GEML-1
- UPC: 783936210209
- PPN: HBL-GEML-1
- UNSPSC: 39121314
CAD
$107.43
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
½" GEM Outlet Body L-Type
Features
- Water shedding cover – suitable for wet locations when mounted in upright position.
- External cover threads on body protecting conductors from damage during pulling.
- No pinching of conductors during cover installation.
- Taper threaded hubs to provide ground continuity.
- Smooth integral hub bushing to protect conductor insulation when pulling.
- Internally threaded cover openings for additional wiring room.
- Covers furnished with boxes.
- Weather-resistant finish.
- Green ground screw standard.
- GE conduit outlet boxes have: GEM Series has water shedding cover - suitable for wet locations when mounted in upright position; external cover threads on body protecting conductors from damage during pulling; no pinching of conductors during cover instal
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
- Hazardous Rating(s)
- Class I, Divisions 1 & 2, Groups C, D;Class I, Zones 1 & 2, Groups IIB, IIA
- Hub Size
- 1/2"
- Color
- Gray
- Size
- 11 in x 7 in x 3.75 in
- Type
- Outlet Body With Cover
- Weight
- 0.79 lb.
- Finish Type
- Powder Epoxy Paint
- Class Code
- D30
- Freight Class Code
- 06316009
- Image Actual Or Representative
- R
- MSDS Flag
- No
- Returnable Indicator
- Yes
- CSA File Number
- LR11716
- Hub Pattern
- L
- Material
- Aluminum, Copper Free (less than 4/10 of 1%)
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 3.950 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 5 EA
- NAICS Code
- 3359326103
Dimensions11 in x 7 in x 3.75 in
Height3.75 in
ApplicationConduit boxes installed in conduit systems within hazardous areas to: protect conductors in threaded rigid conduit, act as pull and splice boxes, interconnect lengths of conduit, change conduit direction, and provide access to conductors for maintenance and future system changes.
Length11 in
Special FeaturesGE conduit outlet boxes have: GEM Series has water shedding cover - suitable for wet locations when mounted in upright position; external cover threads on body protecting conductors from damage during pulling; no pinching of conductors during cover instal
Width7 in
Engineering Drawing 1 Display TextGEML-1 Engineering Drawing
ARRA CompliantContact Manufacturer
Description - Invoice1/2" ALUM OUTLET BODY L TYPE 2
Harmonization Code7609000000
Lead Time42 wk
Order Multiple1 EA
Sub Class CodeD30D237
Gross Weight with Packaging0.79
UL File NumberE10514
SeriesGE Series
BOX SIZE4.125x11.750x7.500 (in)
Carton - Number of Sub Packs5
Carton - SCC-14 Next Lower Level Sub Pack00783936210209
Master Pack DescriptionEach
Certifications
- EU RoHS Indicator
- Contact Manufacturer
