Killark FS-1M ½ Inch Iron Shallow Dead End Device Box, 7.875 x 3.5 x 3.375 Inch, 1 Outlet, NPT Threads
- MPN: FS-1M
- UPC: 783936048710
- PPN: HBL-FS-1M
- UNSPSC: 39121308
CAD
$49.65
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description

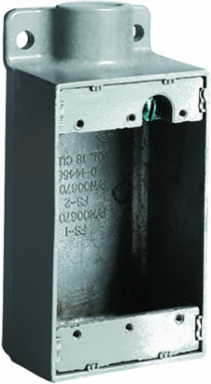

½"Iron, Shallow Dead End Device Box
Features
- Tapered threads (NPT with integral bushings)
- Internal grounding screw
- Mounting feet are provided as standard
- Suitable for use in wet locations when used with gasket covers
- Cast iron is suitable for concrete use
- Tapered threads (NPT with integral bushings). Internal grounding screw. Optional mounting feet available. Single gang style. Suitable for use in wet locations when used with gasket covers. Cast iron is suitable for concrete use. For use with FS-style cove
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- India
- Height
- 3.375 in
- Length
- 7.875 in
- Color
- Gray
- Size
- 7.875 in x 3.5 in x 3.375 in
- Type
- Device Box
- Finish Type
- Powder Epoxy Paint
- ARRA Compliant
- Contact Manufacturer
- Description - Invoice
- 1/2" DEAD END SHALLOW IRON
- Harmonization Code
- 7326908688
- Lead Time
- 28 wk
- Order Multiple
- 1 EA
- Sub Class Code
- D30D233
- Gross Weight with Packaging
- 1.99
- UL File Number
- E3397
- Series
- F Series
- BOX SIZE
- (in)
- Master Pack Description
- Each
Dimensions7.875 in x 3.5 in x 3.375 in
Hub Size1/2"
ApplicationAccommodates wiring devices and provides opening to splice, tap, or pull conductors. Provide access to conductors for maintenance and future system changes.
Number of Outlet1
Special FeaturesTapered threads (NPT with integral bushings). Internal grounding screw. Optional mounting feet available. Single gang style. Suitable for use in wet locations when used with gasket covers. Cast iron is suitable for concrete use. For use with FS-style cove
Width3.5 in
Number Of Outlets1
Class CodeD30
Freight Class Code06316009
Image Actual Or RepresentativeR
MSDS FlagNo
Returnable IndicatorYes
CSA File NumberLR11852
Hub PatternDead-End
MaterialIron
Base Unit of MeasureEA
Carton - SCC-14 Next Lower Level Sub Pack00783936048710
NAICS Code3359326103
Certifications
- EU RoHS Indicator
- Contact Manufacturer
