Killark 2FS-3 Aluminum Two Gang Shallow Device Box 1 Inch x 1 Inch x 2 Inch, Gray
- MPN: 2FS-3
- UPC: 783936190068
- PPN: HBL-2FS-3
- UNSPSC: 39121308
CAD
$128.74
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description

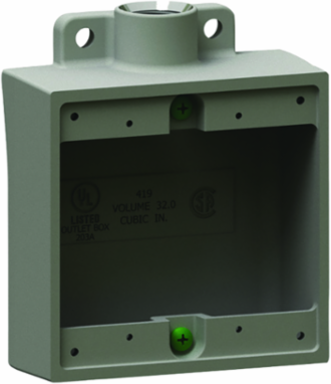

1"Aluminum, 2FS Type Two Gang Shallow Device Box
Features
- Tapered threads (NPT with integral bushings)
- Internal grounding screw
- Mounting feet are provided as standard
- Suitable for use in wet locations when used with gasket covers
- Cast iron is suitable for concrete use
- Tapered threads (NPT with integral bushings). Internal grounding screw. Two gang style. Suitable for use in wet locations when used with gasket covers. For use with FS-style covers (see pages F40-F42).
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
- Height
- 2 in
- Length
- 1 in
- Color
- Gray
- Size
- 1 in x 1 in x 2 in
- Type
- Device Box
- Engineering Drawing 1 Display Text
- 2FS-3 Engineering Drawing
- Nema Rating
- 7 (C, D)
- ARRA Compliant
- Contact Manufacturer
- Description - Invoice
- STD LOC 2GANG 1" FS FITT (SF)
- Harmonization Code
- 7616995190
- Lead Time
- 42 wk
- Order Multiple
- 1 EA
- Sub Class Code
- D30D233
- Gross Weight with Packaging
- 2
- UL File Number
- E3397
- Series
- F Series
- BOX SIZE
- (in)
- Master Pack Description
- Each
Dimensions1 in x 1 in x 2 in
Hub Size1"
ApplicationAccommodates wiring devices and provides opening to splice, tap, or pull conductors. Provide access to conductors for maintenance and future system changes.
Number of Outlet2
Special FeaturesTapered threads (NPT with integral bushings). Internal grounding screw. Two gang style. Suitable for use in wet locations when used with gasket covers. For use with FS-style covers (see pages F40-F42).
Width1 in
Finish TypePowder Epoxy Paint
Number Of Outlets2
Class CodeD30
Freight Class Code06316009
Image Actual Or RepresentativeR
MSDS FlagNo
Returnable IndicatorYes
CSA File NumberLR11852
Hub PatternDead-End
MaterialAluminum, Copper Free (less than 4/10 of 1%)
Base Unit of MeasureEA
Carton - SCC-14 Next Lower Level Sub Pack00783936190068
NAICS Code3359326103
Certifications
- EU RoHS Indicator
- Contact Manufacturer
