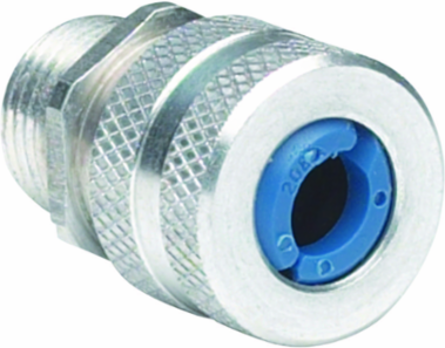

Killark ZS315-EX 1" Aluminum Straight Cord Connector, 1.250-1.375 Inch Cable Range
- MPN: ZS315-EX
- UPC: 783936972558
- PPN: HBL-ZS315-EX
- UNSPSC: 39121431
CAD
$125.09
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
1" Aluminum Cord Connector, Cord Range 1.250-1.375,
Features
- Aluminum construction resists corrosion
- Neoprene grommet seals out oil and moisture
- Nylon retention ring ensures superior holding power
- Aluminum construction resists corrosion. Neoprene grommet seals out oil and moisture. Nylon retention ring ensures superior holding power.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | China |
|---|---|
| Hazardous Rating(s) | Suitable for use in hazardous location applications when installed according to NEC Articles 501.10(b) (Class I, Division 2) or 502.10, 503.10, and 505.15 (Class I Zone 2). |
| Hub Size | 1" |
| Color | Silver |
| Size | 2.31 in x 0.66 in x 1.7 in |
| Type | Straight Cord Connector |
| Finish Type | Natural |
| Class Code | D30 |
| Freight Class Code | 06168002 |
| Image Actual Or Representative | R |
| MSDS Flag | No |
| Returnable Indicator | Yes |
| Cable Range | 1.250 - 1.375 in |
| CSA File Number | LR73478 |
| UL File Number | E22698 |
| Series | Z-EX Series |
| BOX SIZE | 0.000x0.000x0.000 (in) |
| Carton - Number of Sub Packs | 5 |
| Carton - SCC-14 Next Lower Level Sub Pack | 00783936972558 |
| Master Pack Description | Each |
| Dimensions | 2.31 in x 0.66 in x 1.7 in |
|---|---|
| Height | 1.7 in |
| Length | 2.31 in |
| Finish | Natural |
| Special Features | Aluminum construction resists corrosion. Neoprene grommet seals out oil and moisture. Nylon retention ring ensures superior holding power. |
| Width | 0.66 in |
| ARRA Compliant | Contact Manufacturer |
| Description - Invoice | CONN STR 1" 1.250-1.375 EX |
| Harmonization Code | 7616995190 |
| Lead Time | 25 wk |
| Order Multiple | 10 EA |
| Sub Class Code | D30D238 |
| Cord Range | 1.250-1.375, |
| Gross Weight with Packaging | 0.45 |
| Material | Aluminum, Copper Free (less than 4/10 of 1%) |
| Base Unit of Measure | EA |
| Carton - Gross Weight per Pack | 2.250 lb. |
| Carton - Pack Description | Carton |
| Carton - Total Units | 5 EA |
| NAICS Code | 3359323242 |
