Telemecanique Sensors XZCPA1141L2 Pre wired connectors XZ, straight female, M12, 4 pins, cable PVC 2 m
- MPN: XZCPA1141L2
- PPN: TES-XZCPA1141L2
- UNSPSC: 39121528
CAD
$30.75
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description

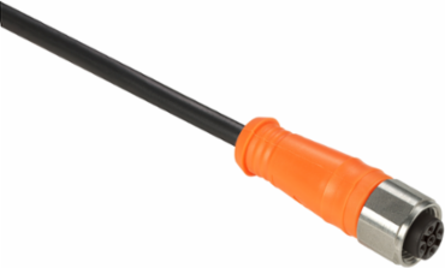

This pre-wired connector is part of the XU range, an offer of photo-electric sensors. It is an elbowed M12, 4-pin, female connector. Its features a PVC cable of 2m and a stainless steel clamping ring. This accessory is suitable for XUK2, XUK8 and XUK9 sensors, food and beverage processing series.
Documentation & Downloads
Specifications
Key Specifications
- Series Name
- Application
- Accessory / Separate Part Category
- cabling accessory
Range Of ProductTelemecanique Cabling components
Accessory / Separate Part Typepre-wired connectors
Complementary
- Collar Material
- stainless steel 316L
- Cable Outer Diameter
- 5.3 mm
- Wire Insulation Material
- PVC
- Cable Connector Fixing
- screw-on
- [In] Rated Current
- 4 A
- Status Led
- without
- Contact Resistance
- 5000 µOhm
Electrical Connectionstraight female connector M12, 4 pins
Minimum Insulating Resistance1 GΩ
[Ue] Rated Operational Voltage250 V AC || 300 V DC
Cable Length2 m
Cable Composition4 x 0.34 mm²
Net Weight0.09 kg
Environment
- Ambient Air Temperature For Operation
- -25-85 °C static
- Ip Degree Of Protection
- IP69K
Ambient Air Temperature For Storage-35-100 °C
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Toxic Heavy Metal Free
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
Mercury FreeYes
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Reach Free Of SvhcYes
