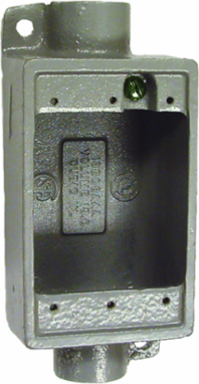

Killark FDC-3 Aluminum Deep Feed Thru Device Box 1 Inch x 1 Inch x 3 Inch, TAA Compliant
Killark FDC-3 Aluminum Deep Feed Thru Device Box 1 Inch x 1 Inch x 3 Inch, TAA Compliant
- MPN: FDC-3
- UPC: 783936150093
- PPN: HBL-FDC-3
- UNSPSC: 39121308
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$96.29/ EA
Description
1"Aluminum, Deep Feed Thru Device Box
Features
- Tapered threads (NPT with integral bushings)
- Internal grounding screw
- Mounting feet are provided as standard
- Suitable for use in wet locations when used with gasket covers
- Cast iron is suitable for concrete use
- Tapered threads (NPT with integral bushings). Internal grounding screw. Optional mounting feet available. Single gang style. Suitable for use in wet locations when used with gasket covers. For use with FS-style covers (see pages F40-F42).
Specifications
Specifications
- Country of Origin
- US
- Each - Width
- 1.000 in
- Hub Size
- 1"
- Application
- Accommodates wiring devices and provides opening to splice, tap, or pull conductors. Provide access to conductors for maintenance and future system changes.
- Number of Outlet
- 1
- Special Features
- Tapered threads (NPT with integral bushings). Internal grounding screw. Optional mounting feet available. Single gang style. Suitable for use in wet locations when used with gasket covers. For use with FS-style covers (see pages F40-F42).
- Width
- 1 in
- Nema Rating
- 7 (C, D)
- ARRA Compliant
- Contact Manufacturer
- Description - Invoice
- 1" KILLARK ALUM DEEP DEVICE BX FEEDTHRU
- Harmonization Code
- 7616995190
- Lead Time
- 42 wk
- Order Multiple
- 1 EA
- Sub Class Code
- D30D233
- Gross Weight with Packaging
- 0.94
- UL File Number
- E3397
- Series
- F Series
- BOX SIZE
- 4.875x15.375x9.250 (in)
- Carton - Number of Sub Packs
- 3
- Carton - SCC-14 Next Lower Level Sub Pack
- 00783936150093
- Master Pack Description
- Each
Dimensions1 in x 1 in x 3 in
Height3 in
Length1 in
ColorGray
Size1 in x 1 in x 3 in
TypeDevice Box
Finish TypePowder Epoxy Paint
Number Of Outlets1
Class CodeD30
Freight Class Code06316009
Image Actual Or RepresentativeR
MSDS FlagNo
Returnable IndicatorYes
CSA File NumberLR11852
Hub PatternFeed-Thru
MaterialAluminum, Copper Free (less than 4/10 of 1%)
Base Unit of MeasureEA
Carton - Gross Weight per Pack2.820 lb.
Carton - Pack DescriptionCarton
Carton - Total Units3
Certifications
- EU RoHS Indicator
- Contact Manufacturer
