Killark FSC-3 1 Inch Aluminum Shallow Feed Thru Device Box, Suitable for Wet Locations
- MPN: FSC-3
- UPC: 783936190198
- PPN: HBL-FSC-3
- UNSPSC: 39121308
CAD
$105.69
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description

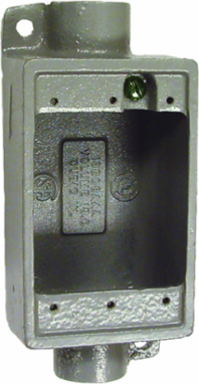

1"Aluminum, Shallow Feed Thru Device Box
Features
- Tapered threads (NPT with integral bushings)
- Internal grounding screw
- Mounting feet are provided as standard
- Suitable for use in wet locations when used with gasket covers
- Cast iron is suitable for concrete use
- Tapered threads (NPT with integral bushings). Internal grounding screw. Optional mounting feet available. Single gang style. Suitable for use in wet locations when used with gasket covers. For use with FS-style covers (see pages F40-F42).
Documentation & Downloads
Specifications
Key Specifications
- Number of Outlet
- 1
- Special Features
- Tapered threads (NPT with integral bushings). Internal grounding screw. Optional mounting feet available. Single gang style. Suitable for use in wet locations when used with gasket covers. For use with FS-style covers (see pages F40-F42).
- Country of Origin
- United States
- Dimensions
- 1 in x 1 in x 2 in
- Hub Size
- 1"
- Width
- 1 in
- Application
- Accommodates wiring devices and provides opening to splice, tap, or pull conductors. Provide access to conductors for maintenance and future system changes.
- Number Of Outlets
- 1
- Class Code
- D30
- Freight Class Code
- 06316009
- Image Actual Or Representative
- R
- MSDS Flag
- No
- Returnable Indicator
- Yes
- CSA File Number
- LR11852
- Hub Pattern
- Feed-Thru
- Material
- Aluminum, Copper Free (less than 4/10 of 1%)
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 21.000 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 25 EA
- NAICS Code
- 3359326103
Size1 in x 1 in x 2 in
ARRA CompliantContact Manufacturer
ColorGray
Height2 in
Length1 in
Engineering Drawing 1 Display TextFSC-3 Engineering Drawing
Finish TypePowder Epoxy Paint
TypeDevice Box
Description - Invoice1" K ALUM SHALLOW FEED THRU
Harmonization Code7616999999
Lead Time42 wk
Order Multiple1 EA
Sub Class CodeD30D233
Gross Weight with Packaging0.84
UL File NumberE3397
SeriesF Series
BOX SIZE2.000x1.000x1.000 (in)
Carton - Number of Sub Packs25
Carton - SCC-14 Next Lower Level Sub Pack00783936190198
Master Pack DescriptionEach
Certifications
- EU RoHS Indicator
- Contact Manufacturer
