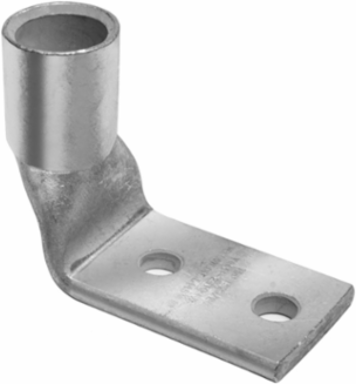

Burndy YAZ1C2TC1490 1 AWG, CU, 2 Hole, 1/4 Stud, 5/8 IN Spacing, Long Barrel, Inspection Window, 90 Degree
- MPN: YAZ1C2TC1490
- UPC: 781810229422
- PPN: BUR-25019316
- UNSPSC: 39121405
CAD
$26.29
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
1 AWG CU, Two Hole, 1/4 Stud Size, 5/8 Hole Spacing, Long Barrel, Inspection Window Internal Chamfer, Tin Plated, UL/CSA, 90°C, Up to 35kV, Green Color Code, 11 or 375 Die Index.
Features
- Barrel is designed with an internal chamfer at the wire entry to ensure smooth insertion of the wire, preventing possible damaging of the strands
- Electro-tin plated unless otherwise specified to reduce galvanic corrosion (bimetallic) and resist corrosive elements
- Connectors are clearly marked with stamping and barrel color coding
Specifications
Key Specifications
| Country of Origin | United States |
|---|---|
| Conductor - Copper Str Size | 1 AWG |
| Description - Slang | TERM CODE LG BBL SKV TEL |
| Dimension - B Length inch | 1.38 in |
| Dimension - Bolt Size fraction | 1/4 |
| Dimension - Height inch | 1.90 in |
| Dimension - Hole Size inch | 0.27 |
| Dimension - L Length Overall mm | 41 mm |
| Dimension - N inch | 0.31 in |
| Dimension - Pad Width inch | 0.67 in |
| Dimension - Stud Size fraction | 1/4 |
| Feature - Barrel Style | Skived |
| Industry Standard(s) | UL 486A-486B |
| Physical Attribute - Tongue Angle | 90 Degree |
| Plated | Y |
| Product Type | TERMINAL |
| Trade Name | HYLUG™ |
| Standard | UL 486A-486B |
| Voltage Rating | 35 kV |
| Conductor Type | CODE |
| Finish Type | Tin-Plated |
| Class Code | B55 |
| Harmonization Code | 8535908020 |
| Lead Time | 12 wk |
| Angle - Pad | 90 ° |
| Number of Pad Holes | 2 |
| Color Code | Green |
| Voltage - Maximum | 35000 |
| BOX SIZE | 3.250x2.440x2.940 (in) |
| Carton - Number of Sub Packs | 10 |
| Carton - SCC-14 Next Lower Level Sub Pack | 00781810229422 |
| Case - SCC-14 Next Lower Level Sub Pack | 30781810229423 |
| Package - Total Units | 10 EA |
| Package Weight | 0.000 lb. |
| NAICS Code | 3359319104 |
| Conductor - Copper Str Navy Size | 75 (37) Navy |
|---|---|
| Conductor - Material | COPPER |
| Dimension - B Length fraction | 1-3/8 in |
| Dimension - Bolt Hole Size inch | 0.27 in |
| Dimension - Bolt Size inch | 0.25 |
| Dimension - Hole Size fraction | 1/4 |
| Dimension - Hole Size mm | 6.9 mm |
| Dimension - Length Overall inch | 1.60 in |
| Dimension - Outside Diameter inch | 0.46 in |
| Dimension - Strip Length inch | 1-7/16 |
| Dimension - Z inch | 0.34 in |
| Feature - Barrel Type | Long |
| Physical Attribute - Number of Holes | 2 |
| Physical Attribute - Tongue Type | Standard |
| Plating Type | Tin - Electro Plated |
| Standards - RoHS Compliance Status | CM |
| Application | Wire Termination |
| Type | Long Barrel, Skive, Tin Plated |
| Conductor Size | 1 AWG |
| Connector Type | LONG BARREL |
| Certification Agency | Proposition 65 |
| Freight Class Code | 16027000 |
| Image Actual Or Representative | A |
| Sub Class Code | B55BH8F |
| Die Index | 11 |
| UL Listed | Yes |
| Material | Copper |
| Base Unit of Measure | EA |
| Carton - Gross Weight per Pack | 0.740 lb. |
| Carton - Pack Description | Carton |
| Carton - Total Units | 10 |
| Package - GTIN - Package | 30781810229423 |
| Package Quantity | 10 EA |
| Standard Package Quantity | 10 |
Certifications
| CSA Approved | Yes |
|---|---|
| ETL | No |
| cULus | No |
|---|---|
| UL Recognized | No |
