Ilsco

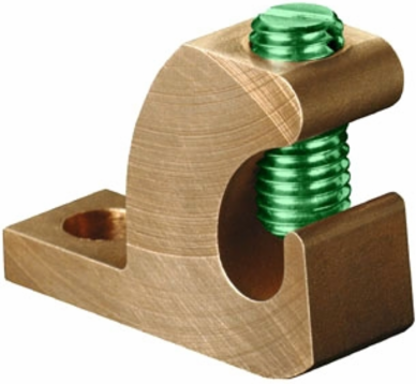

Ilsco GBL-4DB Permaground Copper Lay-in Groud Lug, Conductor Size 4-14, #10 Bolt Size, Slotted Head

Permaground Copper Lay-in Groud Lug, Conductor Size 4-14, #10 Bolt Size, Slotted Head
  • MPN: GBL-4DB
  • UPC: 0783669960174
  • PPN: ILC-GBL-4DB

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Looking to buy a large quantity?

To view product inventory

CAD$18.52/ EA

Specifications

Dimensions

Drive Type Main
Slotted
Mounting Bolt/Stud Size (mm)
254
Mounting Hole Diameter (mm)
5.5372
Tang Length (mm)
11.938
Tang Thickness (mm)
4.699
Tang Width (mm)
9.525
Width BX (IN)
5
Height BX (IN)2.25
Mounting Hole Diameter (IN)0.218
Tang Length (IN)0.47
Tang Thickness (IN)0.185
Tang Width (IN)0.375
Weight BX (LB)3.9

Testing Standards

CSA File Number
LR-29601
Prop65 Compliance
WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov
UL / CULUS Specification
UL 467 Listed
CSA StandardC22.2 No. 65-03
UL Control Number667P
UL File NumberE34440

Additional Class Attributes

Connection
Mechanical
Mounting Kit Hardware Part #
GBL-MHU, GBL-MH1
Number of Mounting Holes
1
Mounting Hole TypeThru
Number of Conductors1
Number of Ports / Wireways1

Material and Finish

Conductor Material
Copper
Wire Binding Hardware Finish
Nickel Strick, Zinc, Green Dye
MaterialCopper
Wire Binding Hardware MaterialStainless steel

Conductor Ranges

Conductor Range CU Solid (Primary, run, main, line)
10 Sol - 14 Sol
Conductor Range CU Stranded (Primary, run, main, line)4 Str - 14 Str

Additional Technical Specifications

Conductor Type
Stranded, Solid

General

Bag Quantity
1
Direct Burial
Yes
NEMA Code
S-573-2
Carton Quantity DescriptionSTD PACK QTY 50
Dual RatedNo
UPC Code78366996017

Specifications

Height
0.825 in
Weight
0.06 lbs
Length1.15 in
Width0.375 in

Bolt and Screw Sizes

Mounting Bolt/Stud Size
#10
Wire Binding Screw Size
1/4
Number of Wire Binding Screws per Port1
Wire Binding Torque2 AWG = 40, 4 - 6 AWG = 35, 10 - 18 AWG = 20, 8 AWG = 25
