Killark

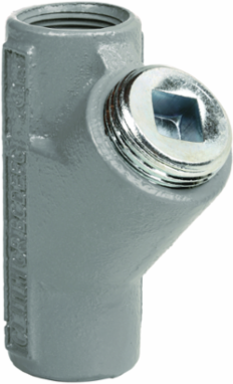

Killark EY-100M 1" Vertical Seal Fitting Iron, Female/Female, 1.8 lb, Powder Epoxy Paint

1" Vertical Seal Fitting Iron, Female/Female, 1.8 lb, Powder Epoxy Paint
  • MPN: EY-100M
  • UPC: 783936089935
  • PPN: HBL-EY-100M
  • UNSPSC: 39131708

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$127.94/ EA

Description

1" EY Vertical Seal Fitting Iron, Female/Female

Features

  • Large opening for easy packing of fiber dam and pouring of compound.
  • Integral bushings in conduit hubs to protect conductor insulation from damage.
  • NPT tapped hubs to ensure ground continuity.
  • Design provides minimum turning radius.
  • 25% conductor fill.
  • Duraloy iron. Tri-coat finish of electrozinc, chromate sealant, and electrostatically applied powder coating.

Specifications

Specifications

Country of Origin
India
Hazardous Rating(s)
Class I, Divisions 1 & 2, Groups B, C, D;Class I, Zones 1 & 2, Groups IIB, IIA;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2
Color
Gray
Height
0.1 in
Length
5 in
Type
Sealing Fitting
Weight
1.8 lb.
ARRA Compliant
Contact Manufacturer
Description - Invoice
SEAL FTG FE 1" FEMAL/FEMAL
Harmonization Code
7307193060
Lead Time
49 wk
Order Multiple
1 EA
Sub Class Code
D30D237
Material
Iron
Base Unit of Measure
EA
Carton - Gross Weight per Pack
6.040 lb.
Carton - Pack Description
Carton
Carton - Total Units
5 EA
Dimensions5 in x 10 in x 0.1 in
ApplicationClass I, Divisions 1 and 2: The purpose of seals in a Class I hazardous location is to minimize the passage of gases and vapors and prevent the passage of flames from one electrical installation to another through the conduit system. Seals are required to
FinishPowder Epoxy Paint
Hub Size1"
Special FeaturesDuraloy iron. Tri-coat finish of electrozinc, chromate sealant, and electrostatically applied powder coating.
Width10 in
Finish TypePowder Epoxy Paint
Class CodeD30
Freight Class Code06316009
Image Actual Or RepresentativeR
MSDS FlagNo
Returnable IndicatorYes
Gross Weight with Packaging1.8
SeriesEY Series
BOX SIZE4.750x15.250x9.375 (in)
Carton - Number of Sub Packs5
Carton - SCC-14 Next Lower Level Sub Pack00783936089935
Master Pack DescriptionEach

Certifications

EU RoHS Indicator
Contact Manufacturer

Downloads
