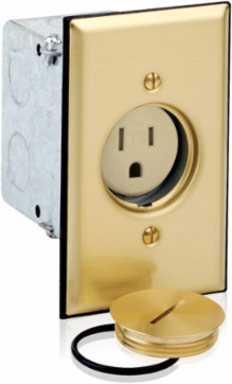

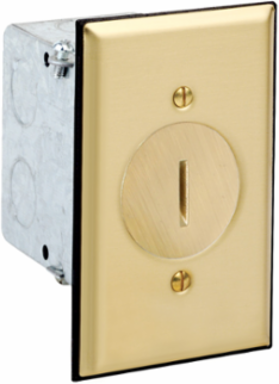

Leviton 5249-TFB 15 Amp 1-Gang Tamper-Resistant Floor Box Receptacle, 125 Volt, Brass Plate

15 Amp 1-Gang Tamper-Resistant Floor Box Receptacle, 125 Volt, Brass Plate - https://media.province-electric.com/476/csv_leviton/medium/e884b699c7f01c1e1954a923784fd1e0ffbbe9fc-medium.png

15 Amp 1-Gang Tamper-Resistant Floor Box Receptacle, 125 Volt, Brass Plate

MPN: 5249-TFB
UPC: 078477410929
PPN: LEV-5249-TFB

Spec sheet

Compare

Loading compare button...

In Stock

Company Stock:

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Looking to buy a large quantity?

To view product inventory

CAD$116.57/ EA

Qty:

Loading add to cart quantity...

Description

1-Gang Floor Box Receptacle Assembly,15 Amp, 125 Volt, NEMA 5-15R, 2P, 3W, Single Receptacle, Tamper-Resistant, Straight Blade, Brass Floorplate & Screw Cap, Back & Side Wired, Steel Strap - IVORY

Features

For low profile, in-floor receptacle installations, our Floor Box Receptacle Assemblies are the perfect fit. Available in both 15 & 20 Amp 1- and 2-gang configurations, these devices are suitable for wood frame construction with carpet, wood, tile, and vinyl finished flooring. Common applications include a variety of uses from home office workstations to high-end stages and entertainment venues.

Specifications

Standards and Certifications

ANSI: C-73

Certification/Listing: cCSAus, NOM-ANCE

Applicable StandardsUL 498, UL514A, CSA C22.2 No. 42, CSA C22.2 No 18.1-04

NEMAWD-1 & WD-6

Material Specifications

Body Material: Nylon

Face Material: Nylon

Grounding Screw: Steel

Mounting Screws: Steel

Cap MaterialBrass

Floorplate MaterialSolid Brass 0.060 In Thick

Line ContactsBrass Triple-Wipe

Strap MaterialZinc-Plated Steel

Mechanical Specifications

Terminal Accom.: 14-10 AWG

Termination: Back & Side

Terminal IDBrass-Hot, Green-Ground, Silver-Neutral

Specifications

Country of Origin: Mexico

RoHS CompliantFalse

Product Features

Color: Ivory

Type: Wood Frame

FeatureTamper-Resistant

Warranty

Warranty: 2-Year Limited

Environmental Specifications

Flammability: Rated V-2 per UL 94

Operating Temperature-40°C to 75°C

Electrical Specifications

Amperage: 15 A

Pole: 2

Voltage: 125 VAC

Dielectric VoltageWithstands 2000V per UL498

Temperature RiseMax 30C after 100 cycles OL at 150 percent rated current

Wire3

AC Horsepower Ratings

At Rated Voltage: 1/2 HP
