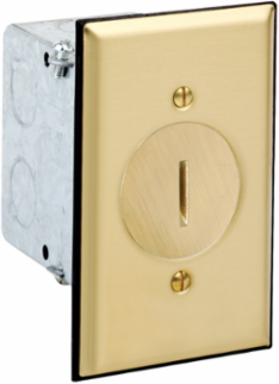

Leviton 5349-TFB 20 Amp 1-Gang Floor Box Receptacle Assembly, Tamper-Resistant, Ivory
- MPN: 5349-TFB
- UPC: 078477703458
- PPN: LEV-5349-TFB
CAD
$132.23
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

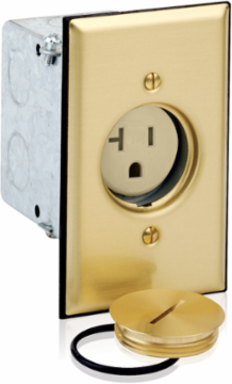

1-Gang Floor Box Receptacle Assembly, 20 Amp, 125 Volt, NEMA 5-20R, 2P, 3W, Single Receptacle, Tamper-Resistant, Straight Blade, Brass Floorplate & Screw Cap, Back & Side Wired, Steel Strap - IVORY
Features
- For low profile, in-floor receptacle installations, our Floor Box Receptacle Assemblies are the perfect fit. Available in both 15 & 20 Amp 1- and 2-gang configurations, these devices are suitable for wood frame construction with carpet, wood, tile, and vinyl finished flooring. Common applications include a variety of uses from home office workstations to high-end stages and entertainment venues.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Mexico |
|---|
| RoHS Compliant | False |
|---|
Standards and Certifications
| ANSI | C-73 |
|---|---|
| Certification/Listing | cCSAus, NOM-ANCE |
| Applicable Standards | UL 498, UL514A, CSA C22.2 No. 42, CSA C22.2 No 18.1-04 |
|---|---|
| NEMA | WD-1 & WD-6 |
Material Specifications
| Body Material | Nylon |
|---|---|
| Face Material | Nylon |
| Grounding Screw | Steel |
| Mounting Screws | Steel |
| Cap Material | Brass |
|---|---|
| Floorplate Material | Solid Brass 0.060 In Thick |
| Line Contacts | Brass Triple-Wipe |
| Strap Material | Zinc-Plated Steel |
Mechanical Specifications
| Terminal Accom. | 14-10 AWG |
|---|---|
| Termination | Back & Side |
| Terminal ID | Brass-Hot, Green-Ground, Silver-Neutral |
|---|
Product Features
| Color | Ivory |
|---|---|
| Type | Wood Frame |
| Feature | Tamper-Resistant |
|---|
Warranty
| Warranty | 10-Year Limited |
|---|
Environmental Specifications
| Flammability | Rated V-2 per UL 94 |
|---|
| Operating Temperature | -40°C to 75°C |
|---|
Electrical Specifications
| Amperage | 20 A |
|---|---|
| Pole | 2 |
| Voltage | 125 VAC |
| Dielectric Voltage | Withstands 2000V per UL498 |
|---|---|
| Temperature Rise | Max 30C after 100 cycles OL at 150 percent rated current |
| Wire | 3 |
AC Horsepower Ratings
| At Rated Voltage | 1 HP |
|---|
