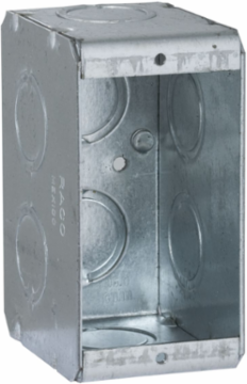

Raco 690 1-Gang Masonry Box, Non-Gangable, 2-1/2 Inch Deep, 16 Cu. In Capacity, Steel
- MPN: 690
- UPC: 050169006900
- PPN: HBL-690
- UNSPSC: 39121333
CAD
$19.48
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
1-Gang Masonry Box, Nongangable, 2-1/2 in. Deep, Eight Concentric KO’s
Features
- Rugged welded design does not fall apart during construction.
- Available from one to six gang configurations in both 2-1/2" and 3-1/2" depths.
- Rectangular shape fits square cuts in block.
- Large volume design allows for additional work room inside the box.
- Standard 1/2" and 3/4" concentric knockouts.
- Device ears inside the box prevent mortar from getting in the device holes.
- Steel voltage partition #971 fits all 2-1/2" or 3-1/2" depths.
- Standard wall plates can be used.
- Supplied with eight 1/2 & 3/4 in. concentric knockouts
- Welded steel construction
- Standard device spacing with tapped 6-32 holes for devices
- 16 cu. in. capacity
- For 4 in. block walls
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Mexico |
|---|---|
| Description - Slang | Masonry Box |
| Product Type | Steel Boxes and Covers |
| Cubic Capacity | 16.0 cu.in |
| Standard | UL Listed |
| Weight | 0.63 lb. |
| Bracket Type | No Bracket |
| Class Code | D01 |
| Freight Class Code | 06202000 |
| Image Actual Or Representative | A |
| Order Multiple | 25 EA |
| Stock Indicator | S - Shelf Stock |
| Buy America(n) Qualified | TAA Compliant (All status valid till December 2026) |
| Gangable | No |
| Material | Steel |
| Proposition 65 Warning Required | No |
| BOX SIZE | 8.75x12.375x6.563 (in) |
| Carton - Gross Weight per Pack | 17.05 lb. |
| Carton - Pack Description | Carton |
| Carton - Total Units | 25 EA |
| Lowest Level UOM | Each |
| Pallet - Number of Sub Packs | 90 |
| Pallet - SCC-14 Next Lower Level Sub Pack | 50050169006905 |
| Pallet Height | 43.753 in |
| Pallet Weight | 1579.500 lb. |
| Standard Package Quantity | 100 |
| Depth | 2.5 in |
|---|---|
| Height | 3.75 in |
| Color | Gray |
| Knockouts | 1/2 - 3/4 in Concentric |
| Type | Box |
| Width | 1.969 in |
| ARRA Compliant | Contact Manufacturer |
| Description - Invoice | MSNBX 1G 2-1/2DP 1/2&3/4CONC KO |
| Harmonization Code | 7326908688 |
| MSDS Flag | Yes |
| Returnable Indicator | Yes |
| Sub Class Code | D017D0172 |
| Drawn or Welded | Welded |
| Wiring System | Conduit |
| Number of Gang(s) | 1-Gang |
| Base Unit of Measure | EA |
| Box Type | Wall Box |
| Carton - Number of Sub Packs | 25 |
| Carton - SCC-14 Next Lower Level Sub Pack | 50169006900 |
| Each - Pack Description | Each |
| Pallet - GTIN - Package | 70050169006909 |
| Pallet - Pack Description | Pallet |
| Pallet - Total Units | 2250 EA |
| Pallet Length | 42.000 in |
| Pallet Width | 48.000 in |
| NAICS Code | 3359326101 |
Certifications
| Buy American Compliant | No |
|---|
| Certified Listed | UL Listed |
|---|
