Raco

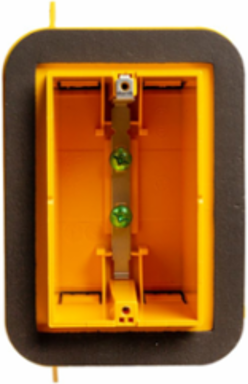

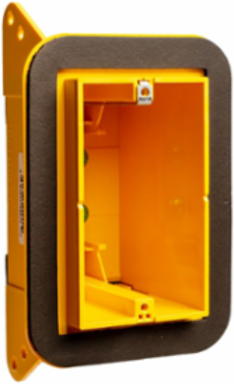

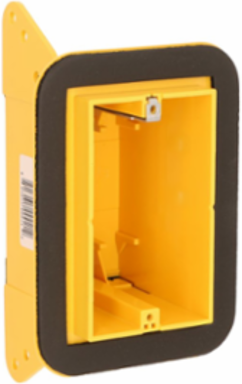

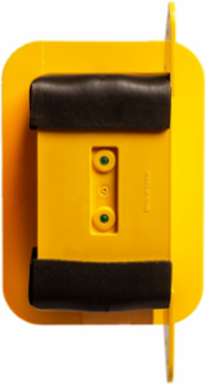

Raco 2011FBAR Vapor Barrier Cable Box 1-Gang, Non-Metallic, 2-3/4 Inch Deep, 4.625 Inch Width

Vapor Barrier Cable Box 1-Gang, Non-Metallic, 2-3/4 Inch Deep, 4.625 Inch Width
Vapor Barrier Cable Box 1-Gang, Non-Metallic, 2-3/4 Inch Deep, 4.625 Inch Width
Vapor Barrier Cable Box 1-Gang, Non-Metallic, 2-3/4 Inch Deep, 4.625 Inch Width
Vapor Barrier Cable Box 1-Gang, Non-Metallic, 2-3/4 Inch Deep, 4.625 Inch Width
  • MPN: 2011FBAR
  • UPC: 805035000212
  • PPN: HBL-2011FBAR
  • UNSPSC: 39121303

Spec sheet

In Stock

Company Stock:

00

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Looking to buy a large quantity?

To view product inventory

CAD$5.72/ EA

Description

Vapor Barrier Cable Box 1-Gang, Non-Metallic, 2-3/4 in Deep, 1/2 in Setback

Features

  • Energy efficient vapour barrier flange provides superior energy savings, reduces air leakage through exterior walls and eliminates the need for separate vapour / air barriers
  • Preset flange at 1/2” for fast positioning
  • Engravings at 5/8”, 1”, 1-1/8’’ and 1-1/4’’ ensure box placement in accurate and consistent depths, while reducing the installation time
  • Superior cubic capacity - Additional volume makes termination easier and is excellent for deeper body devices
  • Oversized nailing / screw bracket for better reach to mount on stud or joint
  • High hammer impact resistant when nailing
  • Lightweight
  • Bright yellow color helps to locate wires in low light levels

Specifications

Cubic Capacity
46.1 cu in
Width
4.625 in
Bracket Setback
0.50 in
Weight
0.256 lb
Certified Listed
CSA
Country of Origin
CN
Depth2.75 in
Height3.625 in
Cable Clamps4
MaterialThermoplastic Resin
ColorYellow

Downloads
