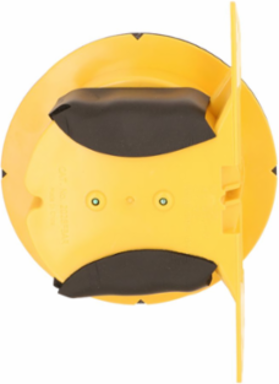

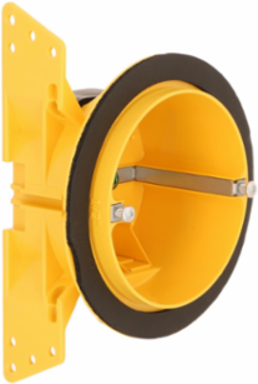

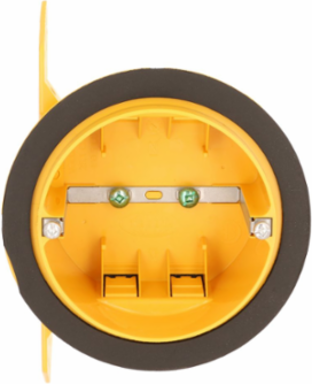

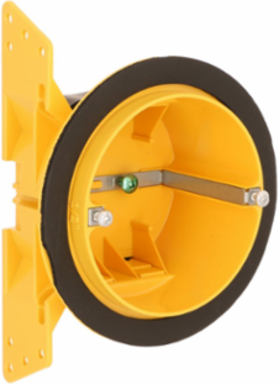

Raco 2028FBAR Vapor Barrier Ceiling Box, 4 Inch Round, Thermoplastic Resin, 0.265 lb.
- MPN: 2028FBAR
- UPC: 805035054536
- PPN: HBL-2028FBAR
CAD
$9.65
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Vapor Barrier Ceiling Box, 4" Round, Non-Metallic,Flanged with Vapor Barrier
Features
- Self-clamping wire entry clamps
- Vapour/air barrier flange and integral wire entry seal provides superior energy savings and quick installation
- Hands free installation for 1/2", 5/8", or 3/4" drywall
- Front mounted grounding screw with combination straight/Robertson head
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China
- Dimensions
- 6.93 in x 5.118 in x 3.150 in
- Length
- 6.93 in
- Weight
- .265 lb.
- Shape
- Round
- Type
- Vapor Barrier Box;Box
- Description - Invoice
- NM CLNG BX VPR BAR 4RND 27CI W/BKT & GRD
- Harmonization Code
- 3926909989
- Replaced Catalog Number
- 2027-FBAR
- Sub Class Code
- D07D042
- Cable Clamps
- 4
- Wiring System
- Nonmetallic Sheathed Cable
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 10.60 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 40
- Each - Pack Description
- Each
- Pallet - GTIN - Package
- 70805035054535
- Pallet - Pack Description
- Pallet
- Pallet Height
- 39.000 in
- Pallet Weight
- 434.000 lb.
- NAICS Code
- 3261998171
ColorYellow
Height3.150 in
Product TypeNon-Metallic Boxes & Covers
Width5.118 in
StyleVapor Barrier
Class CodeD07
Freight Class Code06168002
Image Actual Or RepresentativeA
Returnable IndicatorYes
Bracket Setback0.50
Fixture Lbs.50 lb.
MaterialThermoplastic Resin
BOX SIZE17.000x22.500x11.000 (in)
Carton - Number of Sub Packs40
Carton - SCC-14 Next Lower Level Sub Pack00805035054536
Case Weight10.600 lb.
Lowest Level UOMEach
Pallet - Number of Sub Packs40
Pallet - Total Units1600
Pallet Length46.063 in
Pallet Width45.286 in
Certifications
- Certified Listed
- CSA
