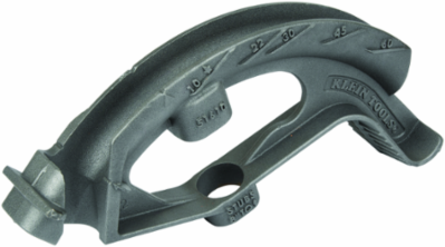

Klein Tools 51610 1-Inch Iron Conduit Bender Head, 6 lbs Weight, 7.5 Inch Height, Compatible with Angle SetterTM

MPN: 51610
UPC: 092644516108
PPN: KLT-51610
UNSPSC: 27112503

$117.97

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Klein Tools' Conduit Bender Head is designed to handle thin wall EMT up to 1-Inch and rigid IMC up to 3/4-Inch thick. Made from Iron with Klein's advanced casting process for the ultimate in core strength and durability. The wide foot pedal provides excellent stability and features angled grooves for extra traction. Easily visible bold cast-in benchmark symbols, degree scales and multiplier scales help save time on the job. This head works with Klein's patented Angle Setters™ (Cat. No. 51613) for quick, repeated bends and the Klein Handle (Cat. No. 51428), which are both sold separately.

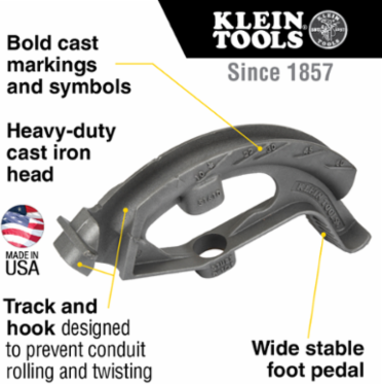

Features

1-Inch Iron Bender Head made of heavy duty cast ductile iron is designed for 1-Inch EMT or 3/4-Inch rigid IMC
Bold cast markings and symbols make for fast, easy conduit alignment to make all bend types, including saddle and back-to-back bends

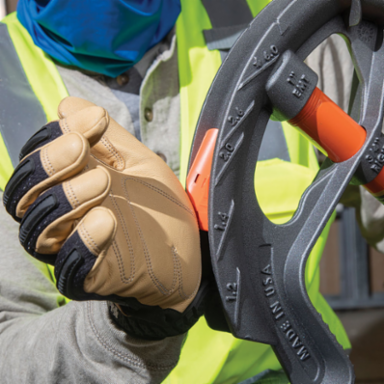

Includes markings for 10-Degrees, 22.5-Degrees, 30-Degrees, 45-Degrees, 60-Degrees and corresponding offset multipliers
Compatible with Klein's unique Angle Setter™ technology for time-saving, repeated accurate bends (Patent pending Angle Setter™ Cat. No. 51613) and works with Klein Tools' bender handle Cat. No. 51428 (sold separately)
Made in USA

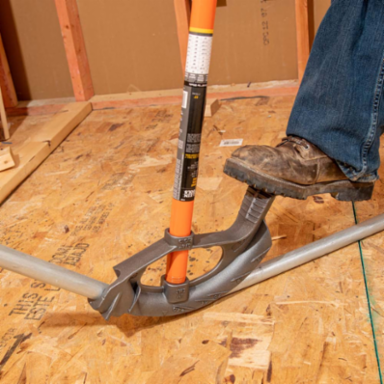

Wide foot pedal provides excellent stability, leverage, and comfort
Interior hook surface prevents conduit from rolling or twisting during bends
Advanced casting process for ultimate core strength
Designed to bend 1-Inch EMT, 3/4-Inch Rigid and 3/4-Inch IMC conduit
Bold, Cast Markings, Compatible with Angle Setter™

Documentation & Downloads

Specifications

Additional

Conduit Size	1 in. EMT; 3/4 in. Rigid IMC
Weight	6 lbs (2.6 kg)
Height	7.5 in
Overall Length	2.5 in (6.4 cm)
Depth	14.25 in
Material	Iron (Ductile Iron)
Marking	106, 226, 306, 456, 606, offset multipliers

For Use With	Angle Setter13 Cat. No. 51613, Klein handle Cat. No. 51428
Overall Height	8.2 in (20.7 cm)
Overall Width	12.9 in (32.9 cm)
Width	3 in
Centerline Bend Radius	7 in Stub-up Height 8 in; Centerline Radius 7-3/8 in
Type	Iron Bender Head
Country of Origin	United States
