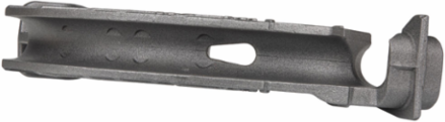

Klein Tools 51609 3/4 Inch Iron Conduit Bender Head, Designed for EMT and Rigid IMC, 3.2 lbs
- MPN: 51609
- UPC: 092644516092
- PPN: KLT-51609
- UNSPSC: 27112503
CAD
$81.43
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Klein Tools' Conduit Bender Head is designed to handle thin wall EMT up to 3/4-Inch and rigid IMC up to 1/2-Inch thick. Made from Iron with Klein's advanced casting process for the ultimate in core strength and durability. The wide foot pedal provides excellent stability and features angled grooves for extra traction. Easily visible bold cast-in benchmark symbols, degree scales and multiplier scales help save time on the job. This head works with Klein's patented Angle Setters™ (Cat. No. 51612) for quick, repeated bends and the Klein Handle (Cat. No. 51427), which are both sold separately.
Features

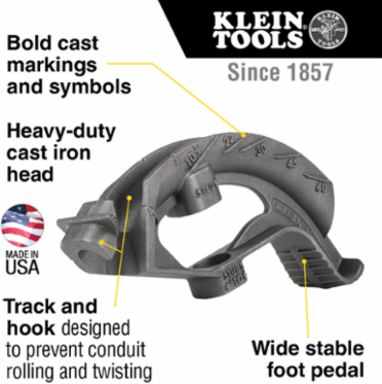

- 3/4-Inch Iron Bender Head made of heavy duty cast ductile iron is designed for 3/4-Inch EMT or 1/2-Inch rigid IMC
- Bold cast markings and symbols make for fast, easy conduit alignment to make all bend types, including saddle and back-to-back bends

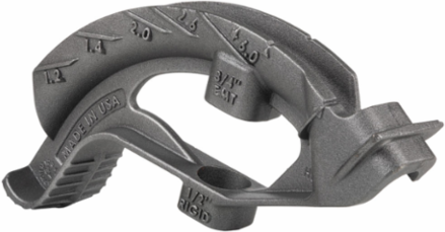

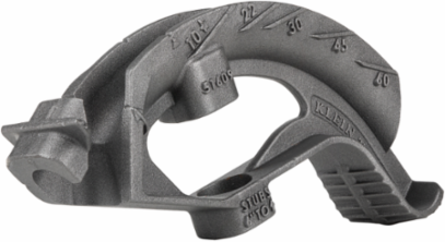

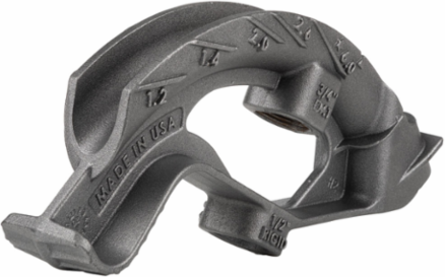

- Includes markings for 10-Degrees, 22.5-Degrees, 30-Degrees, 45-Degrees, 60-Degrees and corresponding offset multipliers

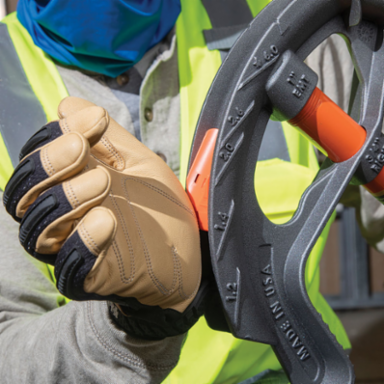

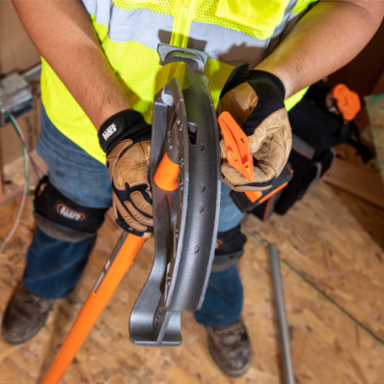

- Compatible with Klein's unique Angle Setter™ technology for time-saving, repeated accurate bends (Patent pending Angle Setter™ Cat. No. 51612) and works with Klein Tools' bender handle Cat. No. 51427 (sold separately)
- Made in USA

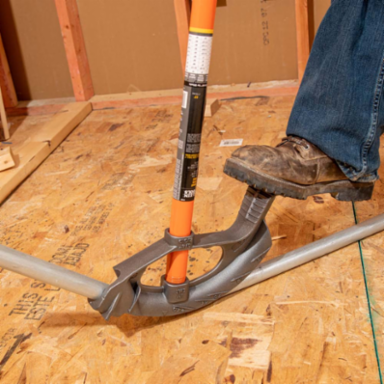

- Wide foot pedal provides excellent stability, leverage, and comfort
- Interior hook surface prevents conduit from rolling or twisting during bends
- Advanced casting process for ultimate core strength
- Designed to bend 3/4-Inch EMT, 1/2-Inch Rigid and 1/2-Inch IMC conduit
- Bold, Cast Markings, Compatible with Angle Setter™
Documentation & Downloads
Specifications
Additional
- Conduit Size
- 3/4 in EMT, 1/2 in Rigid IMC
- Overall Height
- 6.2 in (15.6 cm)
- Width
- 2.5 in
- Overall Length
- 1.9 in (4.8 cm)
- Centerline Bend Radius
- 5 in, Stub-up Height 6 in, Centerline Radius 5.5 in
- Application
- Conduit Bending
- Marking
- 10°, 22°, 30°, 45°, 60°
- Country of Origin
- United States
Weight3.2 lb
Depth13.25 in
Overall Width9.8 in (24.8 cm)
Height6.5 in
MaterialCast Ductile Iron
TypeIron Bender Head
For Use WithAngle Setter™ Cat. No. 51612
