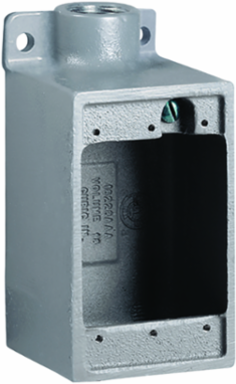

Killark FD-3M Iron 1 Inch Deep Dead End Device Box, 7.75 x 3.25 x 3.25 Inch, NPT Threads
Killark FD-3M Iron 1 Inch Deep Dead End Device Box, 7.75 x 3.25 x 3.25 Inch, NPT Threads
- MPN: FD-3M
- UPC: 783936048550
- PPN: HBL-FD-3M
- UNSPSC: 39121308
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$112.52/ EA
Description
1"Iron, Deep Dead End Device Box
Features
- Tapered threads (NPT with integral bushings)
- Internal grounding screw
- Mounting feet are provided as standard
- Suitable for use in wet locations when used with gasket covers
- Cast iron is suitable for concrete use
- Tapered threads (NPT with integral bushings). Internal grounding screw. Optional mounting feet available. Single gang style. Suitable for use in wet locations when used with gasket covers. Cast iron is suitable for concrete use. For use with FS-style cove
Specifications
Specifications
- Country of Origin
- Mexico
- Height
- 3.25 in
- Length
- 7.75 in
- Color
- Gray
- Size
- 7.75 in x 3.25 in x 3.25 in
- Type
- Device Box
- Finish Type
- Powder Epoxy Paint
- ARRA Compliant
- Contact Manufacturer
- Description - Invoice
- 1" DEAD END DEEP IRON
- Harmonization Code
- 7326908688
- Lead Time
- 42 wk
- Order Multiple
- 1 EA
- Sub Class Code
- D30D233
- Gross Weight with Packaging
- 2.7
- UL File Number
- E3397
- Series
- F Series
- Carton - SCC-14 Next Lower Level Sub Pack
- 00783936048550
Dimensions7.75 in x 3.25 in x 3.25 in
Hub Size1"
ApplicationAccommodates wiring devices and provides opening to splice, tap, or pull conductors. Provide access to conductors for maintenance and future system changes.
Number of Outlet1
Special FeaturesTapered threads (NPT with integral bushings). Internal grounding screw. Optional mounting feet available. Single gang style. Suitable for use in wet locations when used with gasket covers. Cast iron is suitable for concrete use. For use with FS-style cove
Width3.25 in
Number Of Outlets1
Class CodeD30
Freight Class Code06316009
Image Actual Or RepresentativeR
MSDS FlagNo
Returnable IndicatorYes
CSA File NumberLR11852
Hub PatternDead-End
MaterialIron
Base Unit of MeasureEA
Master Pack DescriptionEach
Certifications
- EU RoHS Indicator
- Contact Manufacturer
