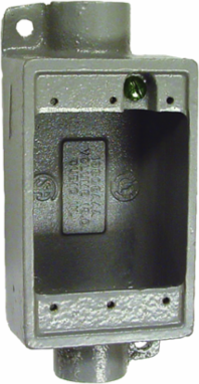

Killark FDC-3M 1 Inch Deep Feed Thru Device Box, Cast Iron, 7.75 x 3.5 x 3.375 Inch
- MPN: FDC-3M
- UPC: 783936048628
- PPN: HBL-FDC-3M
- UNSPSC: 39121308
CAD
$135.37
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
1"Iron, Deep Feed Thru Device Box
Features
- Tapered threads (NPT with integral bushings)
- Internal grounding screw
- Mounting feet are provided as standard
- Suitable for use in wet locations when used with gasket covers
- Cast iron is suitable for concrete use
- Tapered threads (NPT with integral bushings). Internal grounding screw. Optional mounting feet available. Single gang style. Suitable for use in wet locations when used with gasket covers. Cast iron is suitable for concrete use. For use with FS-style cove
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
- Height
- 3.375 in
- Length
- 7.75 in
- Color
- Gray
- Size
- 7.75 in x 3.5 in x 3.375 in
- Type
- Device Box
- Finish Type
- Powder Epoxy Paint
- Nema Rating
- 7 (C, D)
- ARRA Compliant
- Contact Manufacturer
- Description - Invoice
- 1" FEED THRU DEEP IRON
- Harmonization Code
- 7325100080
- Lead Time
- 42 wk
- Order Multiple
- 1 EA
- Sub Class Code
- D30D233
- Gross Weight with Packaging
- 2.83
- UL File Number
- E3397
- Series
- F Series
- BOX SIZE
- (in)
- Master Pack Description
- Each
Dimensions7.75 in x 3.5 in x 3.375 in
Hub Size1"
ApplicationAccommodates wiring devices and provides opening to splice, tap, or pull conductors. Provide access to conductors for maintenance and future system changes.
Number of Outlet1
Special FeaturesTapered threads (NPT with integral bushings). Internal grounding screw. Optional mounting feet available. Single gang style. Suitable for use in wet locations when used with gasket covers. Cast iron is suitable for concrete use. For use with FS-style cove
Width3.5 in
Fixture TypeFloodlight
Number Of Outlets1
Class CodeD30
Freight Class Code06316009
Image Actual Or RepresentativeR
MSDS FlagNo
Returnable IndicatorYes
CSA File NumberLR11852
Hub PatternFeed-Thru
MaterialIron
Base Unit of MeasureEA
Carton - SCC-14 Next Lower Level Sub Pack00783936048628
NAICS Code3359326103
Certifications
- EU RoHS Indicator
- Contact Manufacturer
