Brady THT-43-729-10 UltraTemp® 1-Mil Matte Polyimide Labels, 0.25 Inch H x 1.25 Inch W, 10000 Labels per Roll
- MPN: THT-43-729-10
- UPC: 754473934415
- PPN: BRD-THT-43-729-10
- UNSPSC: 55121612
CAD
$1719.00
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description

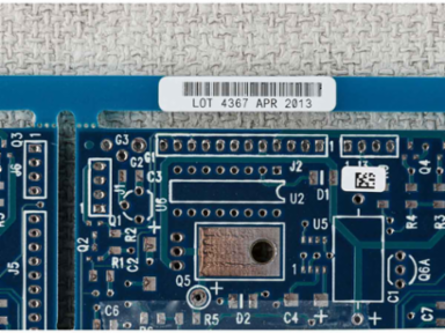

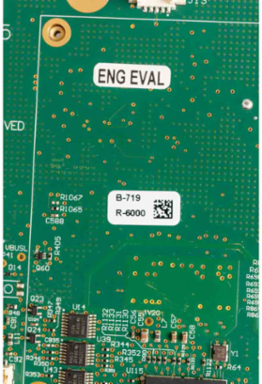

Low-Profile Polyimide (B-729) withstands wave solder environments and multiple harsh washes for printed circuit board and electronic component preprocess labeling.
Features
- High temperature low profile is ideal for processes requiring thin or lighter weight materials
- ultra-durable matte white polyimide material is thermal transfer printable
- UL Approved;Meets requirements of MIL-STD-202G, Method 215K
- Service temperature of -94 to 212° F (-70 to 100° C)
Documentation & Downloads
Specifications
Key Specifications
- Applications
- Circuit Board Labeling
- Brand Name
- Brady®
- Color
- White
- Enables Industry Compliance
- ASTM B 117; ASTM D 1000; ASTM D 2979; ASTM G 155; MIL-STD-202G; UL Recognized
- For Use with Printer
- BBP®81 Label Printer; BRADY IP® Series Label Printer; BradyPrinter i5100; BradyPrinter i7100; BRADYPRINTER PR Plus Series Label Printer; THT 3" Core Printer
- Label/Media Format
- Roll
- Print Technology
- Thermal Transfer
- Printer Compatibility
- BBP12; BBP11; BP1244; BP1344; BP2461; BP3481; BP6441; MVP200; MVP300; 300XPlusII; 360XPlusII; 600XPlusII; PR200Plus; PR300Plus; PR600Plus; IP300; IP600; i7100; i5100
- Quantity per Roll
- 10000
- Recommended Ribbon
- IP-R6006; R6006
- Shape
- Rectangle
- Total Qty per Pack
- 10000 Label(s) / Roll
- Trade Name
- UltraTemp®
- Adhesive Type
- Permanent Acrylic
- Brady Material Number
- B-729
- Material
- Polyimide
- Resistance Properties
- Abrasion-Resistant; Chemical-Resistant; Corrosion-Resistant; Humidity-Resistant; UV-Resistant; Weather-Resistant
- Core Diameter (mm/cm/m)
- 76.20 mm
- Dimensions (Metric)
- 31.75 mm W x 6.35 mm H
- Height (in/ft/yd)
- 0.25 in
- Label/Tape Size (in/ft/yd)
- 0.25 in H x 1.25 in W
- Maximum Service Temperature °F
- 572 °F
- Minimum Service Temperature °F
- -94 °F
- Size - Width (mm)
- 31.75 mm
- Thickness (mm/cm/m)
- 0.086 mm
- Vertical Repeat (mm)
- 8.89 mm
- Width (in/ft/yd)
- 1.25 in
Board ApplicationSMT - Top/Bottom; Through Hole - Bottom; Through Hole - Top
Bulk PartNot a Bulk Part
Compatible Surface TypesHigh Surface Energy
FinishMatte
IndustryAerospace; Automotive; Electronics; Manufacturing
Primary Noun, Basic FunctionLabel
Printer and Label ApplicationsCircuit Board
Printer Compatibility (Print)BBP12; i7100; i5100
Quantity per Row1
Ribbon SeriesR6000HF
Suggested Ribbon SeriesR4700; R6000 Halogen Free
Total Quantity10000
Adhesive (Y/N)Yes
After ProcessYes, this material will work with this application
Label PropertiesHeat Resistant Labels; Permanent Adhesive Labels
Material PropertiesLow Profile
SAP B-NumberB-729
Dimensions0.25 in H x 1.25 in W
Dimensions 20.25 in H x 1.25 in W
Height (mm/cm/m)6.35 mm
Maximum Service Temperature °C300 °C
Minimum Service Temperature °C-70 °C
Sign Size-General0.25 in x 1.25 in
Thickness (in/ft/yd)0.0034 in
Vertical Repeat0.35 in
Web Width (mm/cm/m)36.83 mm
Width (mm/cm/m)31.75 mm
Regulatory Information
- Contains CA PROP 65 Substance
- No - Does not contain
- Contains Heavy Metal(s)
- No - Does not contain
- EU RoHS Compliance
- Pass 2011/65/EU(Pass 2015/863)
- SDS Safety Data Sheet required
- No = MSDS/SDS is not required
Contains CA PROP 65 SubstanceNo
DOT Regulated ProductNo = not regulated by DOT
EU RoHS CompliantYes
