Brady B30EP-168-593-WT Raised Panel Polyester Labels, 1.9 Inch H x 1.2 Inch W, Roll of 180
- MPN: B30EP-168-593-WT
- UPC: 754473211455
- PPN: BRD-B30EP-168-593-WT
- UNSPSC: 55121612
CAD
$264.99
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description

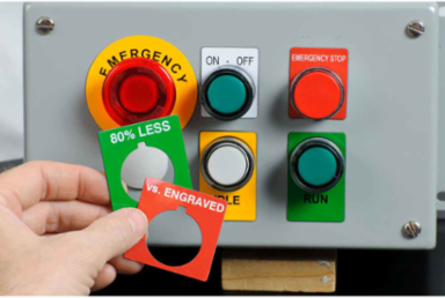

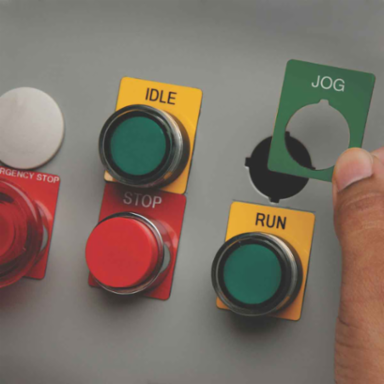

Raised panel Adhesive-Taped Polyester (B-593) labels are designed for patch panel identification, external push-buttons, switches and internal connection points.
Features
- Can be used as rating and serial plates using alphanumerics that require nameplate quality
- Aggressive adhesive and solvent resistance makes them a great replacement for engraved tags
- UL approved
- Service temperature of -4 to 212° F (-20 to 100° C)
Documentation & Downloads
Specifications
Key Specifications
- Applications
- Electrical Labeling
- Color
- White
- Corner Type
- Rounded Corners
- Enables Industry Compliance
- RoHS Compliant; UL Recognized
- For Use with Printer
- BBP®30 Label Printer; BBP®31 Sign and Label Printer; BBP®33 Label Printer; BBP®35 Multi-Color Sign and Label Printer; BBP®37 Color & Cut Sign and Label Printer; BradyPrinter i3300; BradyPrinter S3000; BradyPrinter S3100
- Label/Media Format

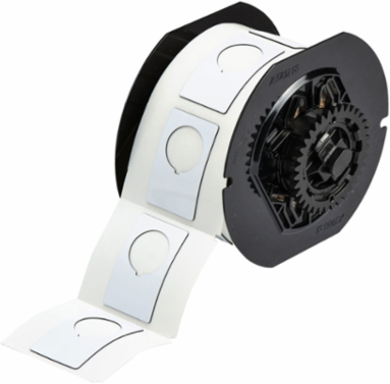

- Roll
- Primary Noun, Basic Function
- Label
- Printer and Label Applications
- Electrical; General Identification; Inspection Repair; Rating & Name Plates
- Printer Compatibility (Print)
- BBP35; BBP37; i3300; S3000; S3100
- Quantity per Row
- 1
- Ribbon Series
- B30-R6000HF
- Software Compatibility
- Brady Workstation, LabelMark, MarkWare
- Total Qty per Pack
- 180 Label(s) / Box
- Trade Name
- B30
- Brady Material Number
- B-593
- Label Properties
- Heat Resistant Labels; Permanent Adhesive Labels
- Material Properties

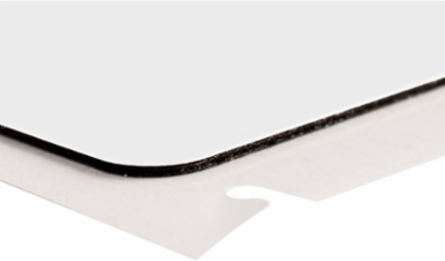

- Raised
- SAP B-Number
- B-593
- Dimensions
- 1.9 in H x 1.2 in W
- Dimensions 2
- 1.9 in H x 1.2 in W
- Height (mm/cm/m)
- 48.26 mm
- Hole Inside Diameter (mm/cm/m)
- 22.50 mm
- Maximum Service Temperature °C
- 100 °C
- Minimum Service Temperature °C
- -20 °C
- Sign Size-General
- 1.9 in x 1.2 in
- Thickness (in/ft/yd)
- 0.0256 in
- Vertical Repeat
- 2.125 in
- Web Width (mm/cm/m)
- 63.50 mm
- Width (mm/cm/m)
- 30.48 mm
Brand NameBrady®
Compatible Surface TypesHigh Surface Energy
DiagramIcon 22 (keyhole)
FinishGloss
Hole ShapeCircle with Key Hole
Manufacturer Part NumberB30EP-168-593-WT
Print TechnologyThermal Transfer
Printer CompatibilityS3000; i3300; S3100; BBP30; BBP31; BBP33; BBP35; BBP37
Quantity per Roll180
Recommended RibbonB30-R6000
ShapeRectangle
Suggested Ribbon SeriesR4400; R6000 Halogen Free
Total Quantity180
Adhesive TypePermanent Acrylic - Foam Backed
Indoor or Outdoor UseOutdoor Use
MaterialPolyester
Resistance PropertiesAbrasion-Resistant; Chemical-Resistant; Corrosion-Resistant; Humidity-Resistant
Average Outdoor Durability10 Years
Dimensions (Metric)30.48 mm W x 48.26 mm H
Height (in/ft/yd)1.9 in
Hole Inside Diameter (in/ft/yd)0.885 in
Label/Tape Size (in/ft/yd)1.9 in H x 1.2 in W
Maximum Service Temperature °F212 °F
Minimum Service Temperature °F-4 °F
Size - Width (mm)30.48 mm
Thickness (mm/cm/m)0.65 mm
Vertical Repeat (mm)54.00 mm
Width (in/ft/yd)1.2 in
Regulatory Information
- Contains CA PROP 65 Substance
- Yes Contains-Label not req.
- Contains Heavy Metal(s)
- No - Does not contain
- EU RoHS Compliance
- Pass 2011/65/EU(Pass 2015/863)
- SDS Safety Data Sheet required
- No = MSDS/SDS is not required
Contains CA PROP 65 SubstanceNo
DOT Regulated ProductNo = not regulated by DOT
EU RoHS CompliantYes
