Tripp Lite U280-001-W2-HG Hospital-Grade USB Wall Charger 1-Port, 2.5A, UL 60601-1 Certified
- MPN: U280-001-W2-HG
- UPC: 037332200716
- PPN: TRP-U280-001-W2-HG
CAD
$54.93
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

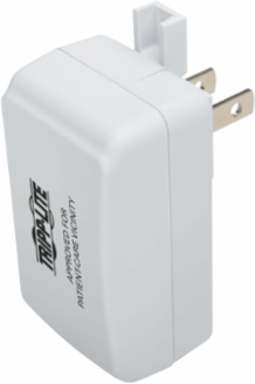

Hospital-Grade USB Wall Charger 1-Port, 2.5A, UL 60601-1 Certified
Features
- Meets UL 60601-1 standards for charging mobile devices in patient care areas
- Provides 80 times the protection of a standard GFCI outlet, making it safe for wet areas
- Protects against overcharging and overheating that can start fires and damage batteries

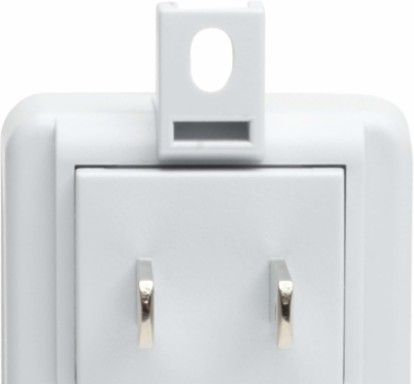

- Convenient locking tab mounts to wall outlet for compliance and security purposes
- Great for charging in wet locations, including kitchens, pools, bathrooms and gyms
- 2-year limited warranty
- Hospital-Grade USB Charger Certified Safe for Use in Patient Care Areas
- Fast Charging for Patients, Visitors or Staff in Hospitals, Clinics and Other Medical Facilities
- Safe for Everyday Use in Your Home and Other “Wet” Environments
Documentation & Downloads
Specifications
Features & Specifications
| Driver Required | No |
|---|---|
| Technology | USB |
| Quick Charge Compliant | No |
|---|
Certifications
| Certifications | Tested to ETL, CSA, ROHS, WEEE, 2MOPP |
|---|
| Approvals | UL Listed (UL60601-1) |
|---|
Connections
| Ports | 1 |
|---|---|

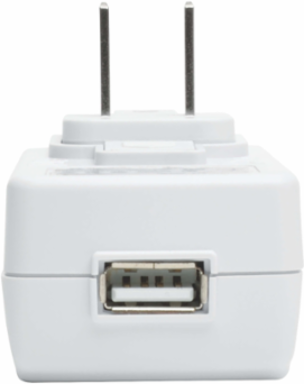

| Side B - Connector 1 | USB A (FEMALE) |
| Side A - Connector 1 | NEMA 1-15P (NON-POLARIZED) |
|---|
Physical
| Color | White |
|---|---|
| Shipping Dimensions (hwd / in.) | 7.50 x 5.00 x 0.50 |
| Unit Dimensions (hwd / in.) | 1.16 x 2.80 x 1.24 |
| Material of Construction | High Impact Plastic, 94V0 Polycarbonate, Non-Vented |
|---|---|
| Shipping Weight (lbs.) | 0.15 |
| Unit Weight (lbs.) | 0.15 |
Input
| Input Connection Type | NEMA 1-15P |
|---|---|
| Voltage Compatibility (VDC) | 5.2 |
| Input Current | 0.3A |
| External Power Supply Output Specs (V / A) | 5.2V, 2.5A |
| External Power Supply Certifications | FCC; ETL; CSA; RoHS |
| Voltage Compatibility (VAC) | 100-250 |
|---|---|
| Input Frequency | 50/60 Hz |
| External Power Supply Input Specs (V / Hz / A) | 100-240V/ 50-60 Hz/ 0.3A |
| External Power Supply Plug(s) | NEMA 1-15P North America |
Output
| Charging Ports / Amps | 3A / 2A / 1.5A |
|---|---|
| Charging Method | USB |
| Output Capacity | 13W |
|---|
Environmental
| Operating Temperature Range | 32 TO 104 F (0 TO 40 C) |
|---|---|
| Relative Humidity | 0% TO 95% RH |
| Storage Elevation (ft.) | 9842 |
| Power Consumption (Watts) | 13.07 @ Rated Load |
| Storage Temperature Range | -40 TO 176 F (-40 TO 80 C) |
|---|---|
| Operating Elevation (ft.) | 9842 |
| BTUs | 44.61 @ Rated Load |
Overview
| UPC Code | 037332200716 |
|---|
Warranty
| Product Warranty Period (Worldwide) | 2-year limited warranty |
|---|
