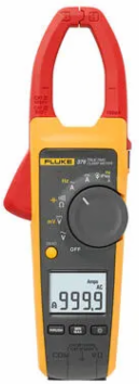

Fluke FLUKE 376 FC Fluke 376 FC True-RMS Clamp Meter with iFlex
- MPN: FLUKE 376 FC
- UPC: 095969798396
- PPN: FLU-FLUKE-376 FC
CAD
$927.35
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Fluke 376 FC True-RMS Clamp Meter with iFlex
Documentation & Downloads
Specifications
Additional
| Amperage AC (clamp jaws) | 999.9 A |
|---|---|
| Amperage DC | 999.9 A |
| Voltage DC | 1000 V |
| Resolution AC current via flexible probe | 0.1 A ( 999.9 A), 1 A ( 2500 A) |
| Resistance range | 60 k with continuity detection |
| mV DC range | 500 mV |
| Accuracy AC current via flexible probe | 3 % 5 digits (5 Hz to 500 Hz) |
| Accuracy AC voltage | 1 % 5 digits (20 Hz to 500 Hz) |
| Accuracy mV DC | 1 % 5 digits |
| Accuracy Resistance | 1 % 5 digits |
| Jaw opening | 34 mm (1.3 in) |
| Flexible current probe cable length | 1.8 m (70.8 in) |
| Weight | 395 g (13.9 oz) |
| Operating temperature range | -10 C to +50 C (14 F to 122 F) |
| Safety rating | CAT III 1000 V, CAT IV 600 V |
| Operating humidity | Non-condensing, 90% RH (10 C to 30 C), 75% RH (30 C to 40 C), 45% RH (40 C to 50 C) |
| Storage altitude | 12,000 m (39,370 ft) |
| Radio frequency certification | FCC ID:T68-FBLE, IC:6627A-FBLE |
| Amperage AC (iFlex probe) | 2500 A |
|---|---|
| Voltage AC | 1000 V |
| Resolution AC current via jaw | 0.1 A |
| Frequency range | 5-500 Hz |
| Capacitance range | 1000 F |
| Accuracy AC current via jaw | 2 % 5 digits (10 Hz to 100 Hz) |
| Accuracy DC current | 2 % 5 digits |
| Accuracy DC voltage | 1 % 5 digits |
| Accuracy Frequency | 0.5 % 5 digits |
| Accuracy Capacitance | 1 % 4 digits |
| Flexible current probe diameter | 7.5 mm (0.29 in) |
| Dimensions | 24.9 cm x 8.5 cm x 4.5 cm (9.8 in x 3.3 in x 1.7 in) |
| Battery type | 2 AA alkaline |
| Storage temperature range | -40 C to +60 C (-40 F to 140 F) |
| Compliance | IEC 61010-1, IEC 61010-2-032 CAT III 1000 V / CAT IV 600 V, IEC 61010-2-033 CAT III 1000 V / CAT IV 600 V |
| Operating altitude | 3000 m (9842 ft) |
| IP rating | IP30 (non-operating) |
| Electromagnetic Compatibility | IEC 61326-1, IEC 61326-2-2 CISPR 11 Group 1 Class A |
