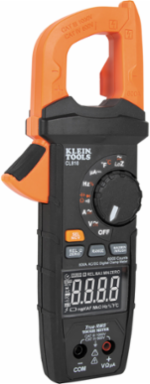

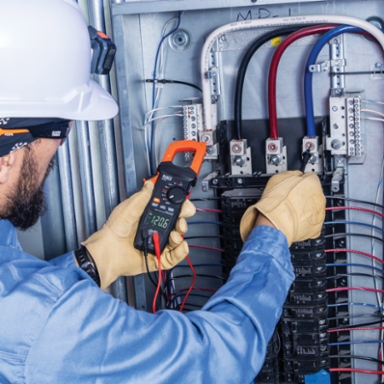

Klein Tools CL810 600A AC/DC Auto-Ranging TRMS Clamp Meter with Worklight
- MPN: CL810
- UPC: 092644694486
- PPN: KLT-CL810
- UNSPSC: 41113678
CAD
$204.60
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Klein Tools CL810 Clamp Meter with Flashlight delivers accurate measurements across AC/DC current, voltage, resistance, continuity, frequency, inrush, and capacitance, all with True RMS precision. It features diode testing and LoZ mode to eliminate ghost voltages. Temperature is taken via thermocouple. Features NCV detection with escalating audio-visual alert. The transflective reverse-contrast display and lighted dial ensure visibility in any lighting; a reliable tool for diverse applications.
Features
- Clamp meter with True RMS provides accurate and reliable measurements across various applications
- Measures AC/DC voltage, AC/DC current 10mA-600A, resistance, DC micro amps, temperature, diode test, continuity, capacitance, frequency/duty cycle, and inrush

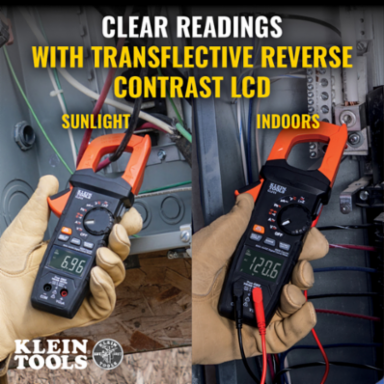

- Transflective reverse-contrast display provides excellent visibility in both sunlight and dark environments

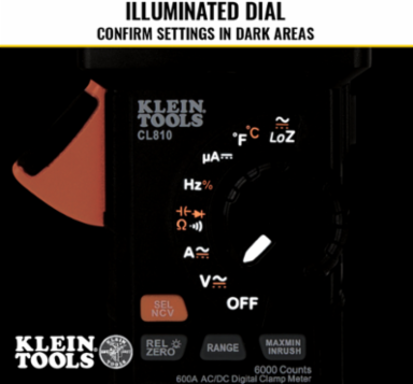

- Illuminated dial ensures clear visibility and easy reading, even in low-light environments
- Features a low impedance (LoZ) mode to identify and eliminate ghost voltages, preventing false readings and ensuring more accurate measurements

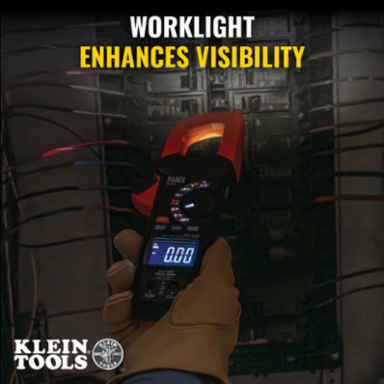

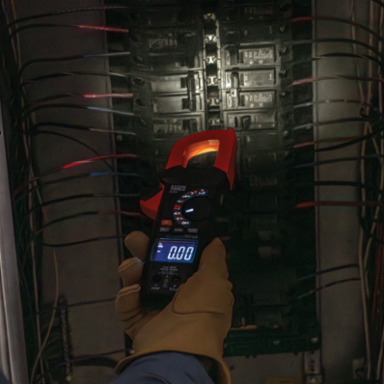

- Integrated worklight illuminates the work area for improved visibility in dark or confined spaces
- Non-contact voltage detection is integrated into the clamp jaw, with audible and visual indicators that intensify as the clamp moves closer to the voltage source
- Rated IP40 for ingress protection, withstands drops from 6.6 feet (2 m), and includes right-angle input test leads, thermocouple, storage pouch, instruction manual, and 3 x AAA batteries
- Ergonomic design and overmold provide a comfortable grip, with easy dial adjustment using the thumb

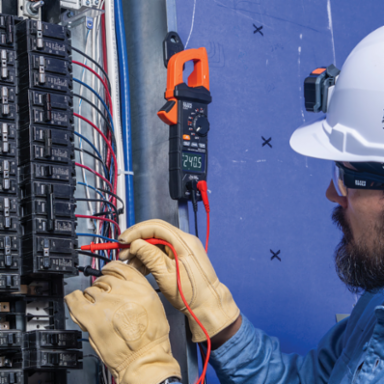

- Clamp body includes a side-mounted test lead holder and a back mount that accommodates an optional magnetic hanger (Cat. Nos. 69445 or 69417) for hands-free operation
- Transflective Reverse-Contract Display; Lighted Dial; Built-in Worklight; Built-in Lead Holder
Documentation & Downloads
Specifications
Key Specifications
- Ohms
- 60MΩ Resistance (60MΩ Resistance)
- Overall Width
- 3.47 Inch (8.8 cm) (3.47 Inch) (8.8 cm)

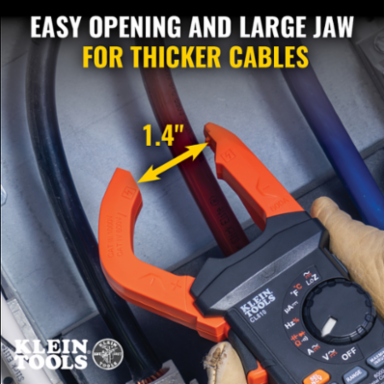

- Jaw Size
- 3.6 cm (1.4 Inch) (3.6 cm) (1.4 Inch)
- AC Voltage
- 1000V
- Temperature Range
- 40° to 1832° F (-40° to 1000° C)
- DC Micro-Amp
- Yes
- Application
- Variety of Electrical Diagnostic and Troubleshooting Applications
- Material
- ABS/Electronics
- Drop Protection
- 6.6' (2 m)
- Voltage
- 1000V AC; 1000V DC
- Functions
- AC/DC/ Voltage, AC/DC Current, Resistance, DC Micro Amps, Audible Continuity, Temperature, Low Impedance, Non-Contact Voltage Testing, Diode Test, Capacitance, Frequency/Duty Cycle, Inrush, Min/Max Value, Rel/Zero, Data Hold Capability
- Frequency
- 10Hz - 60 kHz
- Batteries
- 3 x AAA
- Auto Ranging
- Yes
- Height
- 1.1800 in
- Depth
- 9.0100 in
Overall Height4.2 cm (1.65 Inch) (4.2 cm) (1.65 Inch)
Overall Length23 cm (9.06 Inch) (23 cm) (9.06 Inch)
Ingress ProtectionIP40
Auto-Power OffYes
DC Voltage1000V

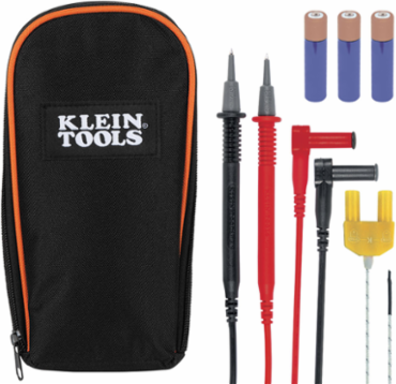

IncludedClamp Meter; Right-Angle Input Test Leads; Thermocouple; Storage Pouch; Instruction Manual; and 3 x AAA Batteries
DC Polarity IndicatorYes
Capacitance6000µF
Current600A
TypePro Clamp Meter
AccuracySee Instructions
StandardCAT IV 600V, CAT III 1000V, Class 2, Double Insulation, CE, UKCA
DisplayTransflective Reverse-Contrast with 6000 Count LCD
TRMSYes
Width3.4700 in
Weight0.8100 lbs
